Belmont Voyager Dental Chair

Simplicity, Reliability and Compact

  • Belmont Voyager Dental Chair is a reliable, affordable chair
  • Belmont Voyager Dental Chair has superior access for patient and the team.
  • Belmont Voyager Dental Chair comes as standard with this LED light
  • Belmont Voyager Dental Chair
  • Belmont Voyager Dental Chair has two choices of upholstery

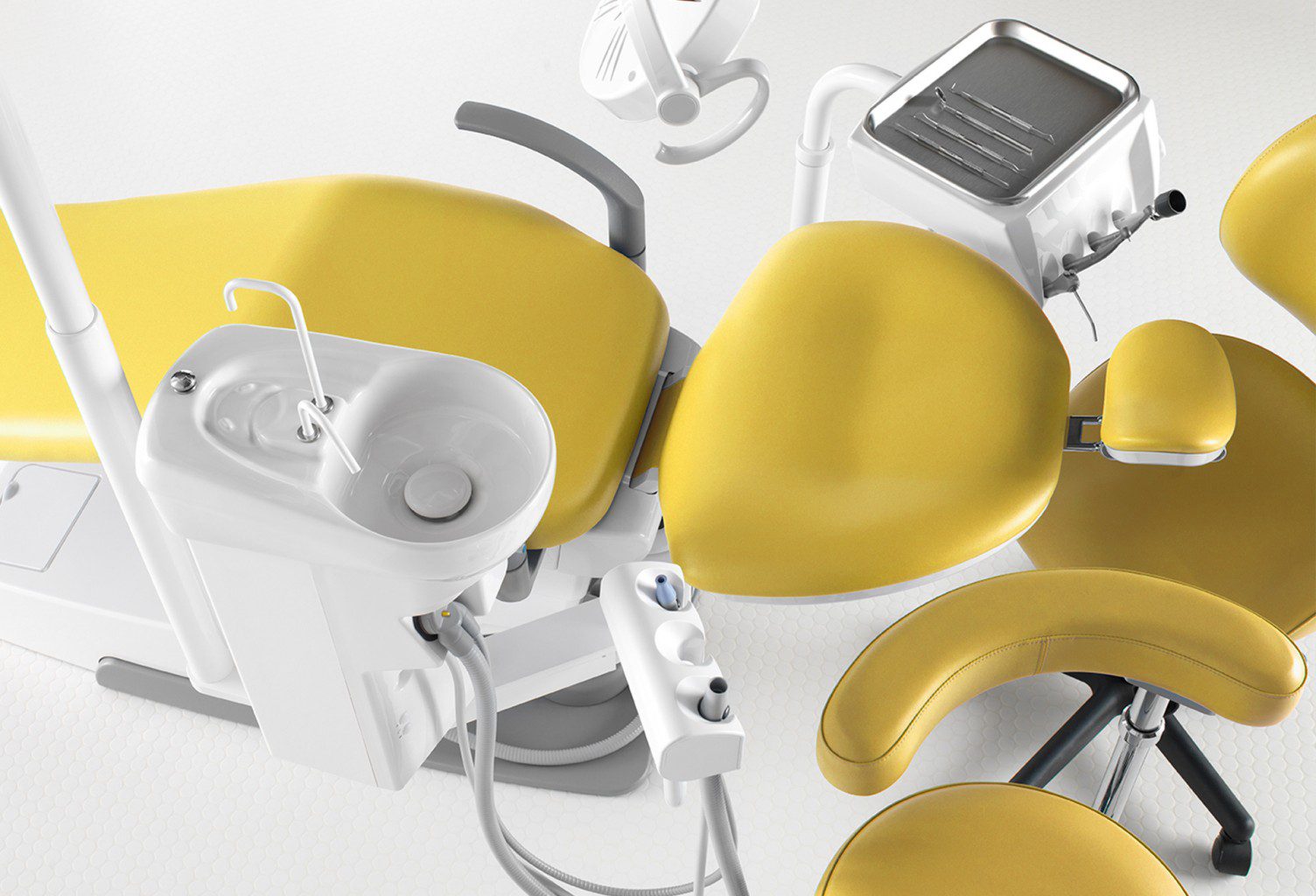

The Belmont Voyager Dental Chair and its treatment centres are extremely versatile and reliable offering incredible value to all practices.

Over many years (this is the 3rd generation released in October 2015) the Voyager III has proven itself and now is one of the most popular chairs with dental professionals. But what's the attraction for this unit:

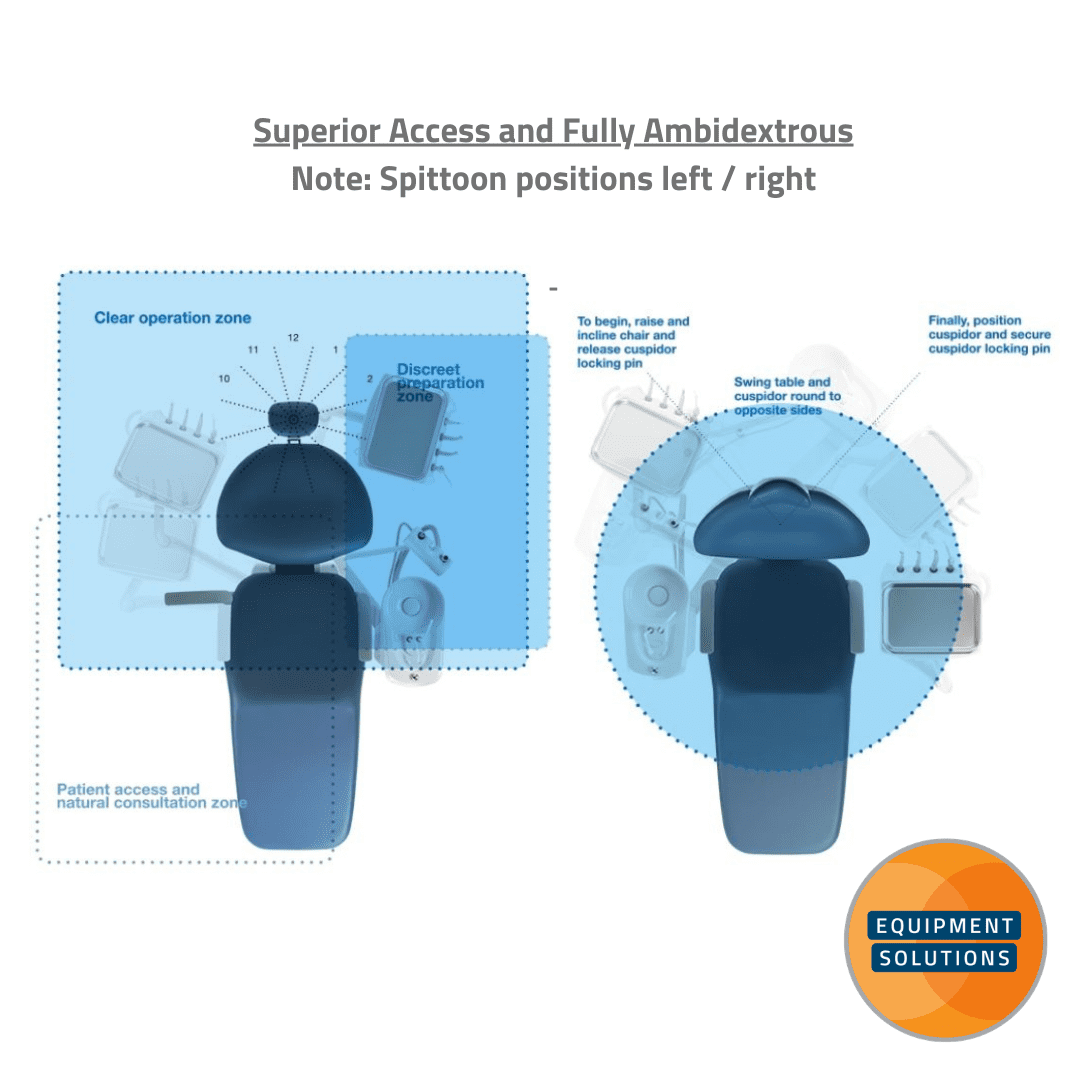

Fully Ambidextrous

Change from left to right, right to left in seconds with ease. This enables clinicians to quickly set up for procedures. Unlike other chairs of its value the unit ensures that if required the spittoon also can be positioned to the left or right.

Ergonomic Access for Efficiency

The rear mounted delivery swings to 12 o'clock to enable cleaning and preparation can proceed during a dentists consultation. This delivery with its superior ergonomics ensures treatments run smoothly and every task is provided calmly and with more easily.

Alternatively add a mobile cart seperately with the chair. This can be a good choice if you would like a more flexible solution.

Ease to use

The simplicity of the delivery controls ensure that uses feel confident in their work. New associates and team members familise and acquaint themselves with its features.

Takara Belmont are a Japanese manufacturer of dental equipment, with a respected and historic UK base. Their products are known for their outstanding levels of reliability. All of the range offer a robust solution for your surgery. With parts readily available and engineers across the UK experienced in their units for support and servicing. Belmont equipment is a solid choice and investment.

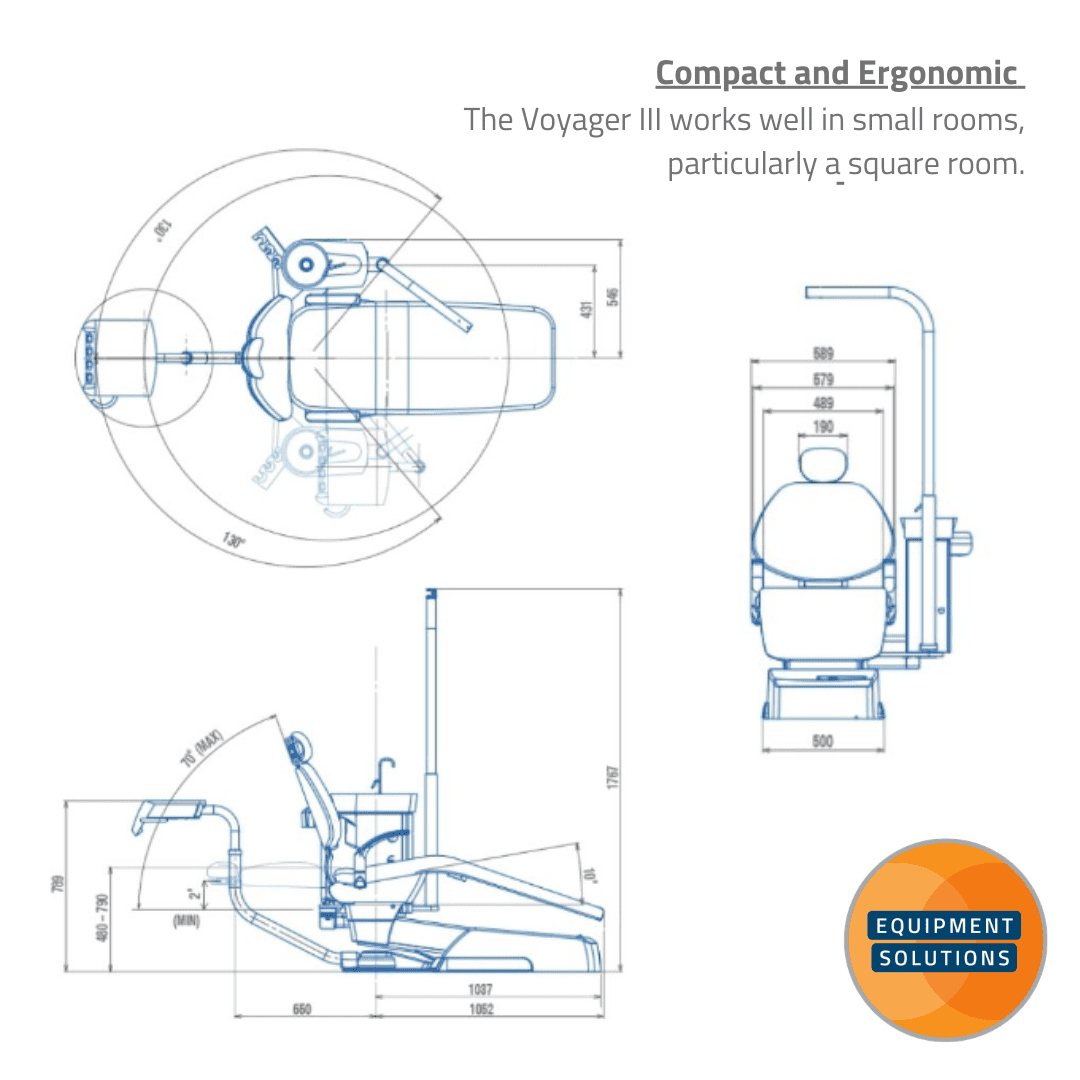

Compact and Quiet

The Voyager has a small footprint and can work in most surgeries regardless of sizes and shape. The Voyager III has now lost the 'umbilical' and the base is now shorter.

The ultra-thin backrest aides in your ergonomic working position, ensuring you can get you legs comfortably under the chair for better access to the patient cavity.

The near silent operation reassures patients experience. Together with comfortable armrests.

Delivery and Control

Base mounted swing-around operators table, with 3 handpiece outlets, with easy-clean surfaces.

Ideal console arrangement for Assistant's preparation, with easy to position table that rotates and is height adjustable. It comes with a steel tray and non-slip mat.

The ceramic bowl for the spittoon rotates 90 degress for patients easy and is easy to clean.

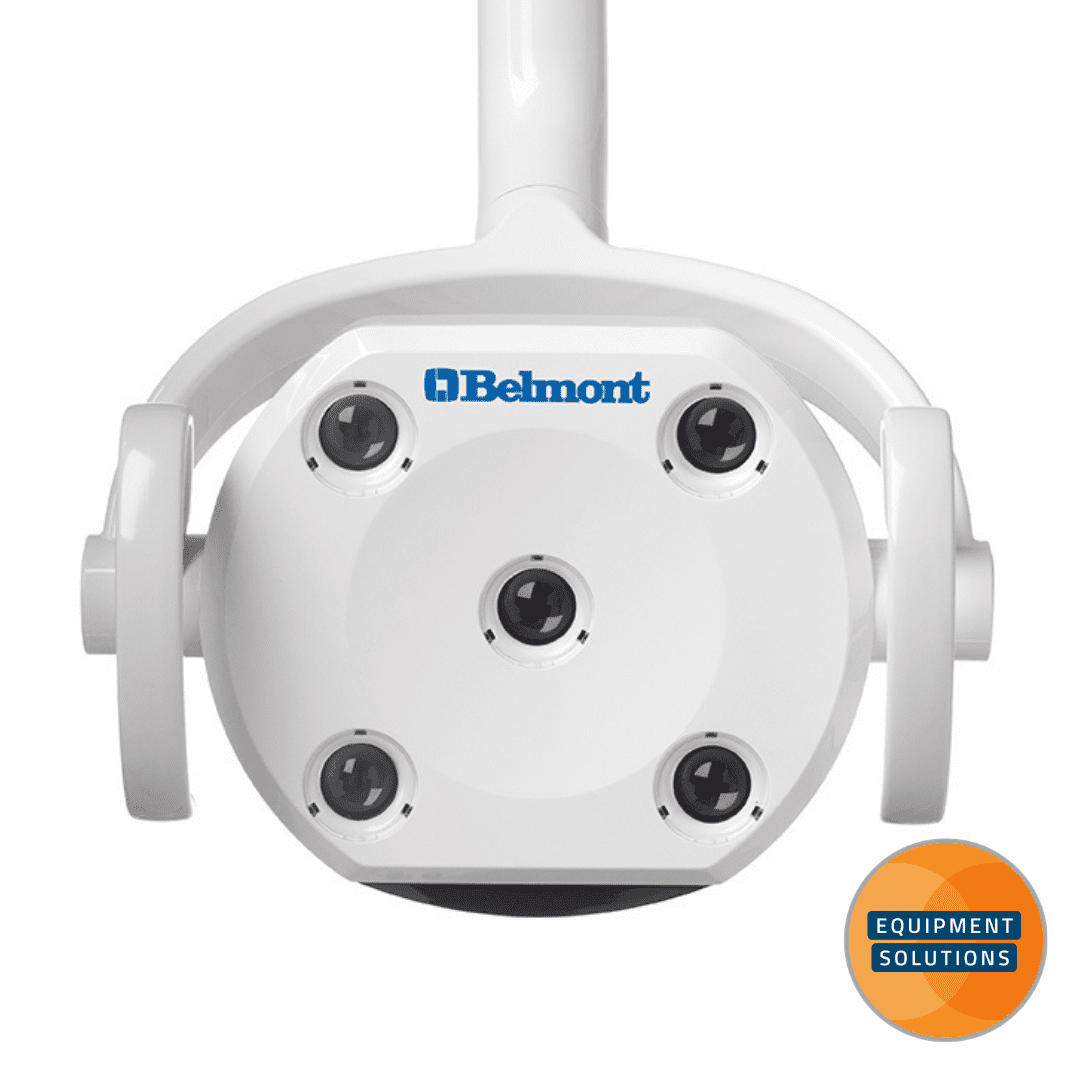

Unit Mounted Operating Light

This chair package comes with the 320 Series LED Light operating light as standard.

Alternative Delivery Solutions

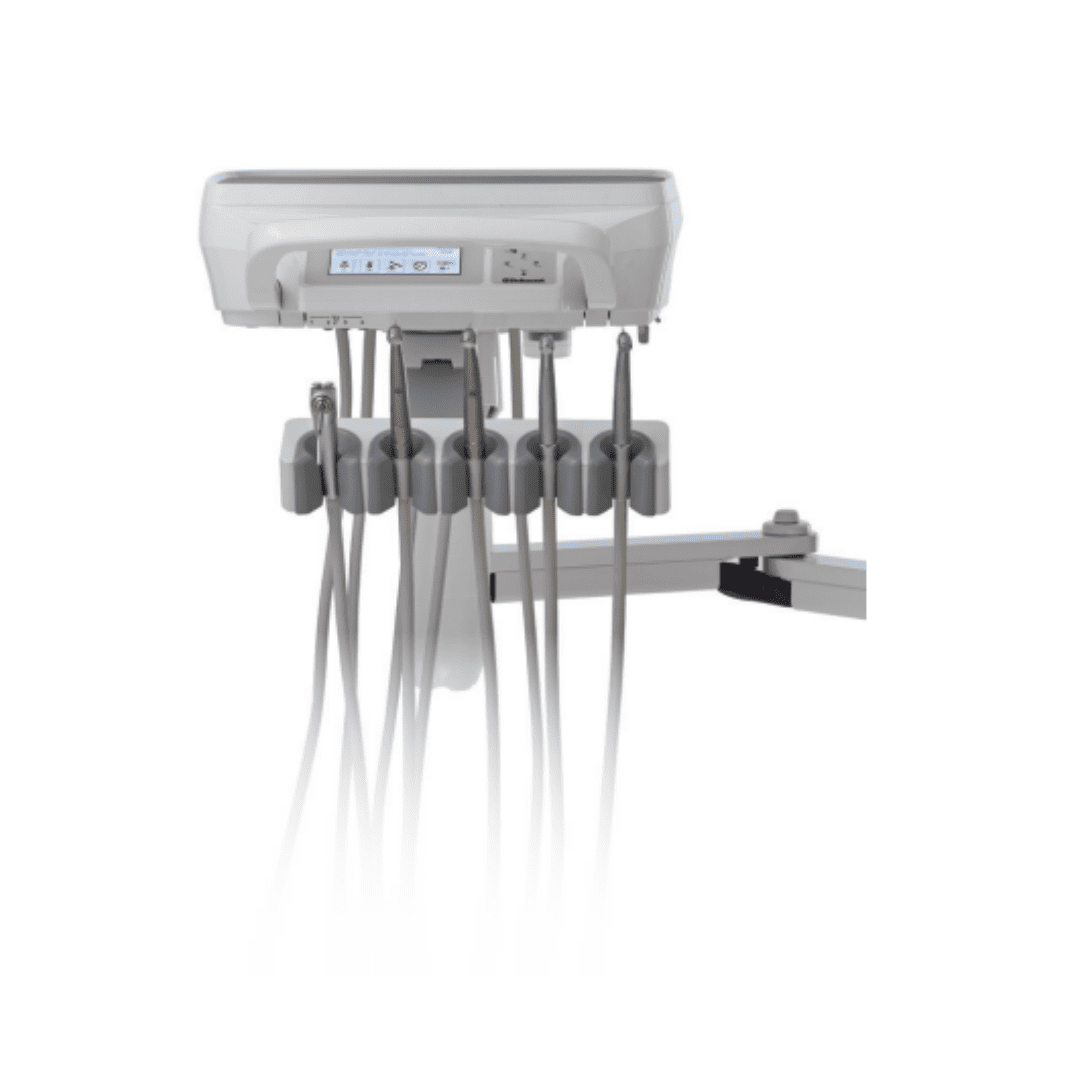

The Voyager unit is also available with cart or cabinet mounted delivery options.

A FREE 5 Year Warranty is standard with all Belmont Packages

belmont voyager dental chair
The Specification for the Chair Section:
Seat initial Height


Seat Lifting Stroke


Backrest Movement

0˚ ~ 72˚ above Horizontal

Auto Movement

2 Preset, 1 Last Position Memory
and 1 Auto Return

Control Voltage


Power Consumption

230V, 50Hz, 3.7A

Net Weight


Maximum Load

135kg (21.26 stone)

Service Life

10 years

Specification on Unit Section:
Doctor Side Handpiece

1 x High Speed Turbine Tubing
1 x Low Speed Air Motor Tubing
1 x 3-Way Syringe

Assistant Side Handpiece

Saliva Ejector (Central System Type)
Vacuum (Central System Type)

Bowl Flush

Manual Control


Manual Control

Dental Light

048-VG Type

Net Weight

67 kg (With Dental Light)

Service Life

10 Years

Site survey: Recommended
