A-dec 500 Dental Chair

Superior Comfort and Integration for All

Categories: Dental Chairs, Dental Chairs

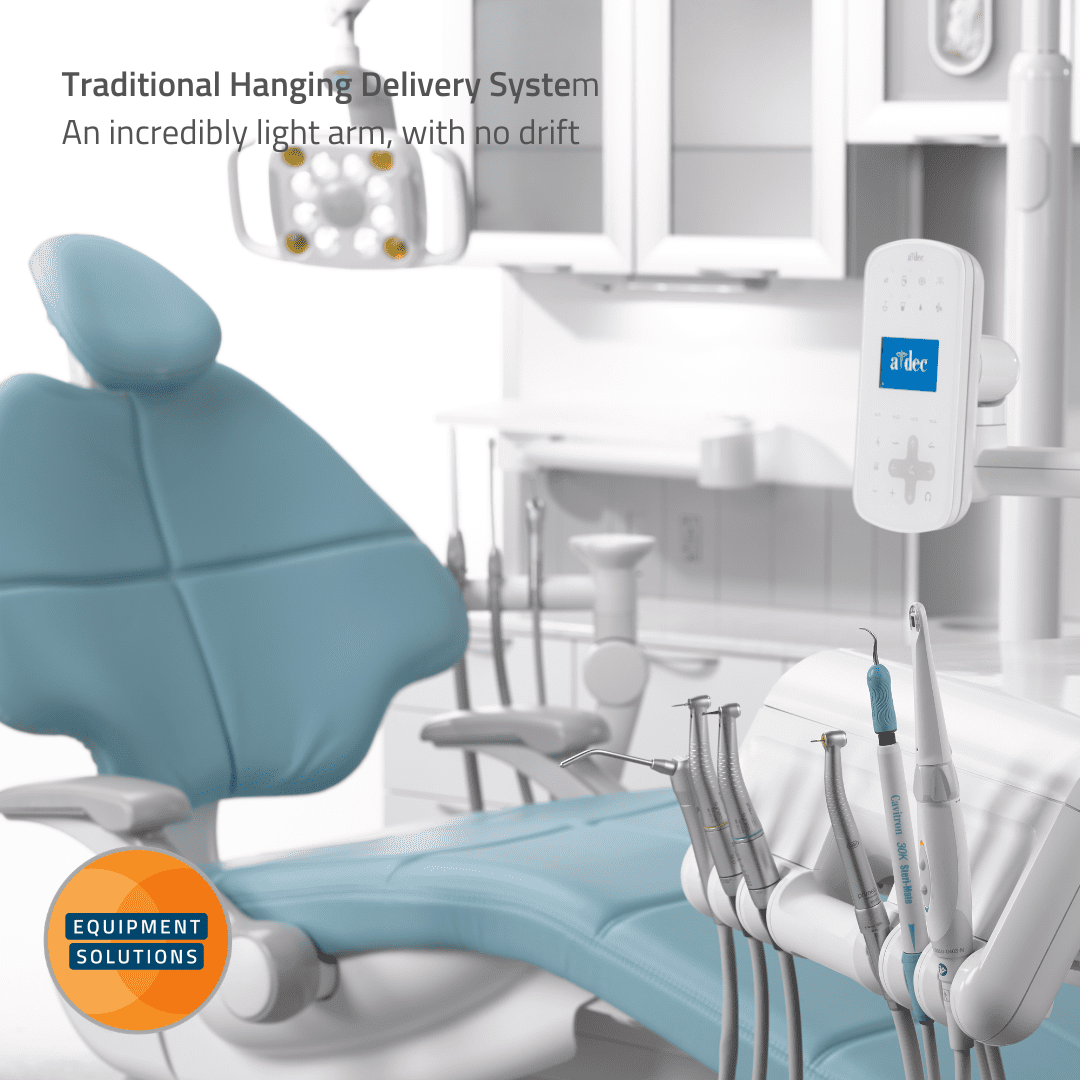

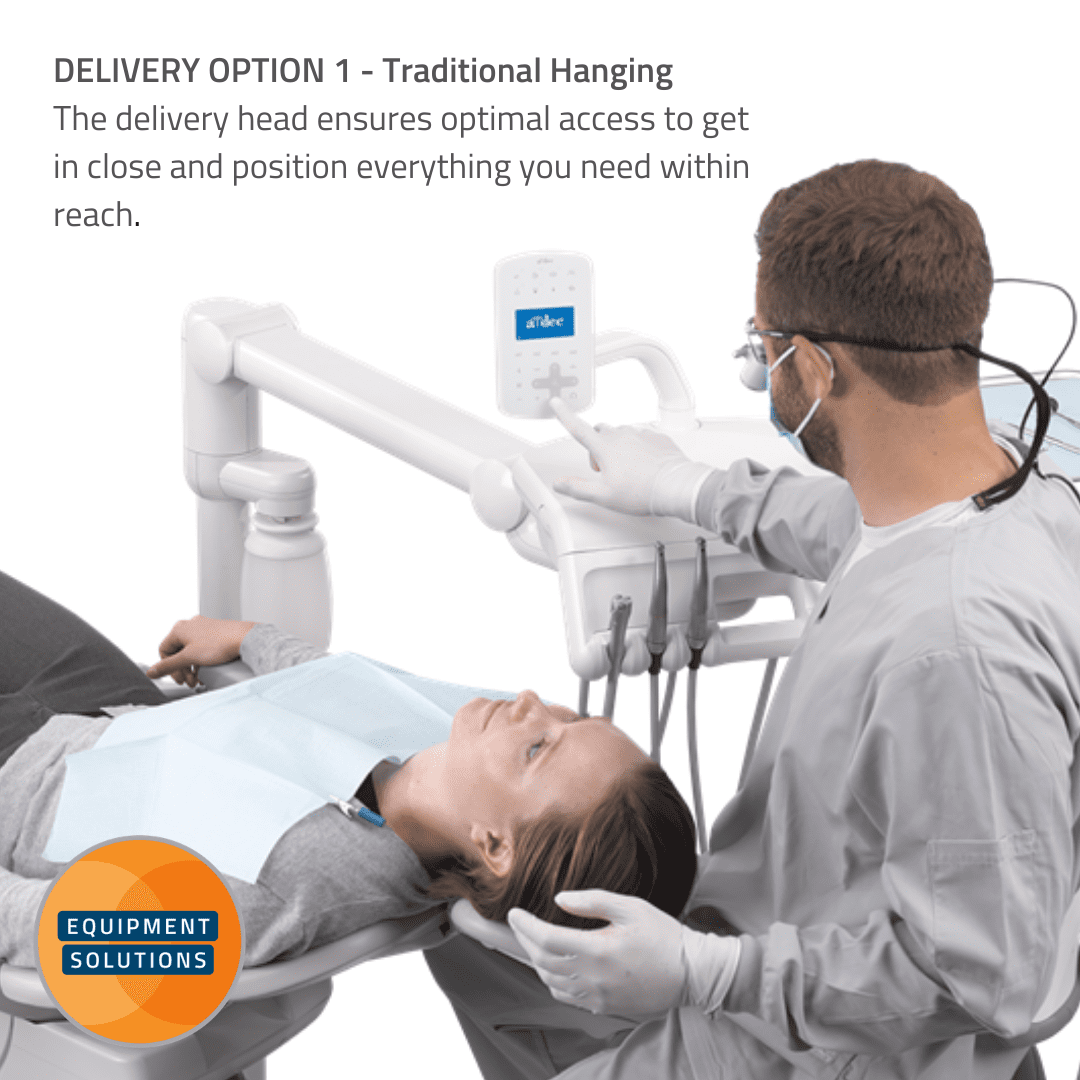

  • The A-dec 500 with Traditional Hanging Delivery
  • The modular system from A-dec allow 4 different delivery heads on the A-dec 500
  • The A-dec 500 with continental is really worth considering for an ergonomic solution

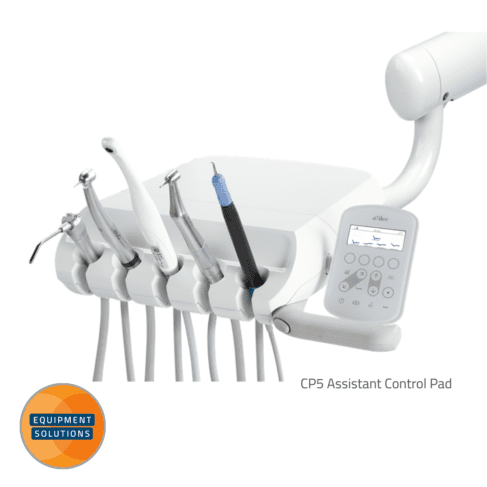

  • A-dec 500 Dental Chair now has a NEw delivery head which smoothly and precisely situate the delivery where you want it

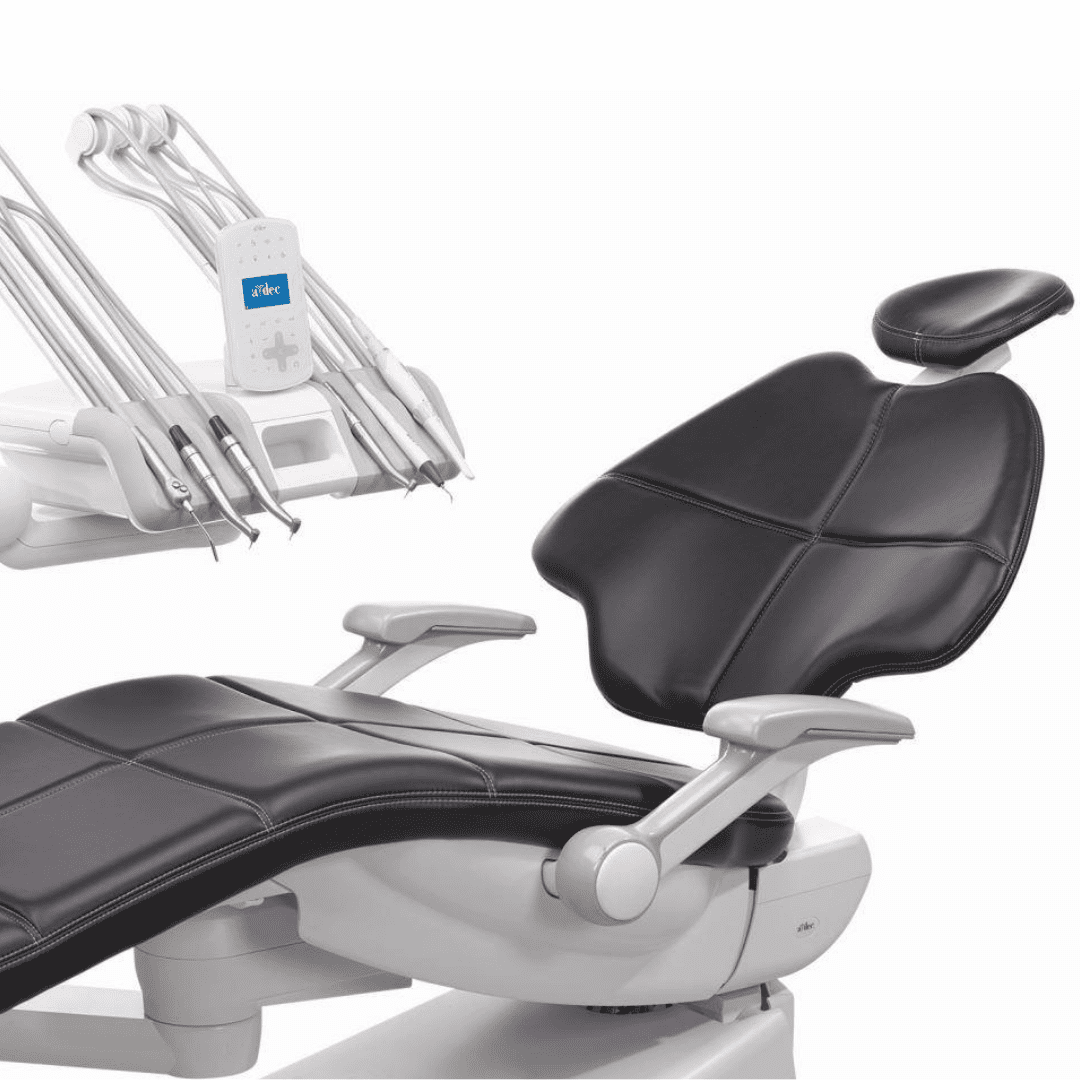

  • A-dec 500 Dental Chair offers a ergonomic continental style delivery

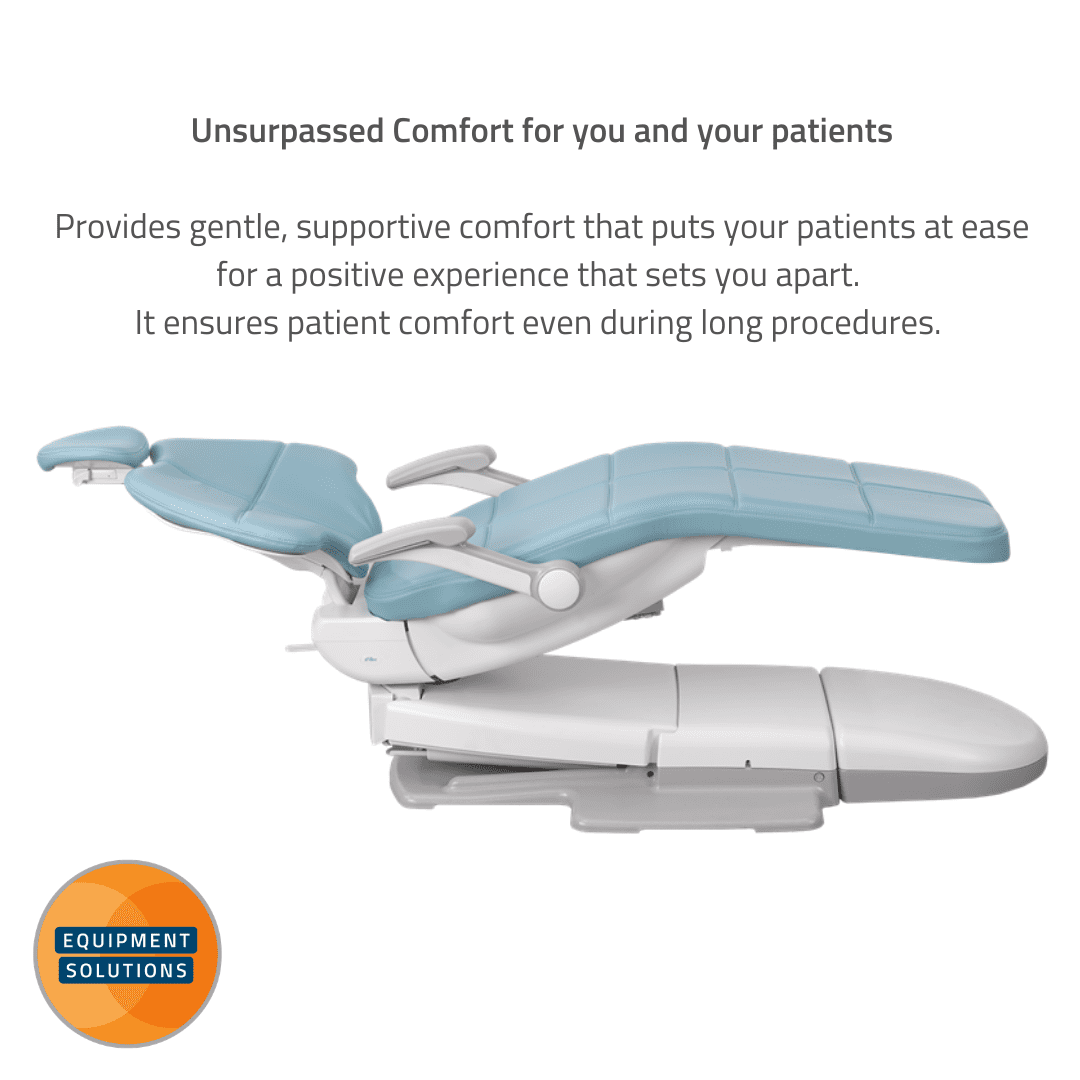

  • A-dec 500 Dental Chair offers unsurpassed comfort for your patients

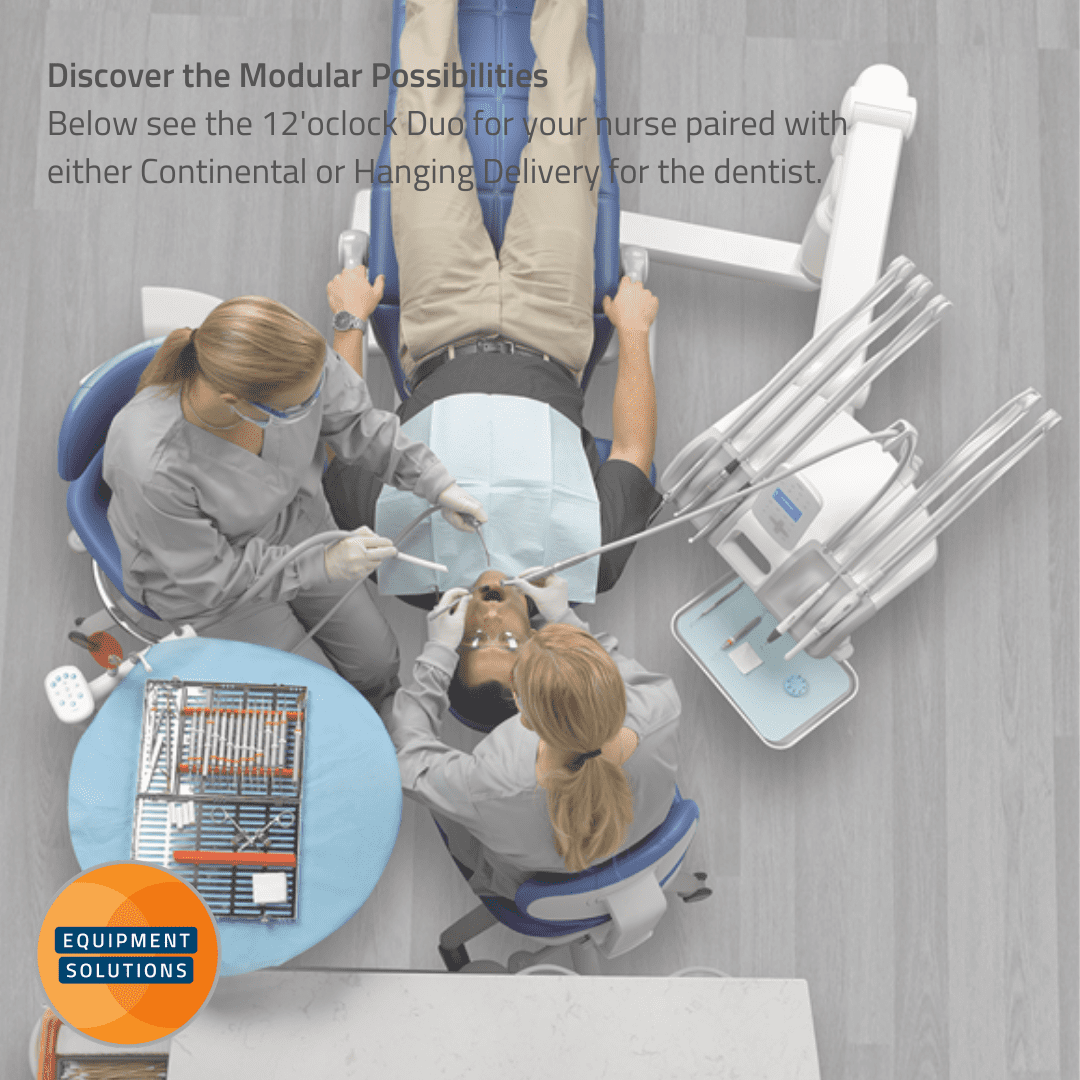

  • The A-dec 500 pictured with the A-dec 12 o'clock duo system

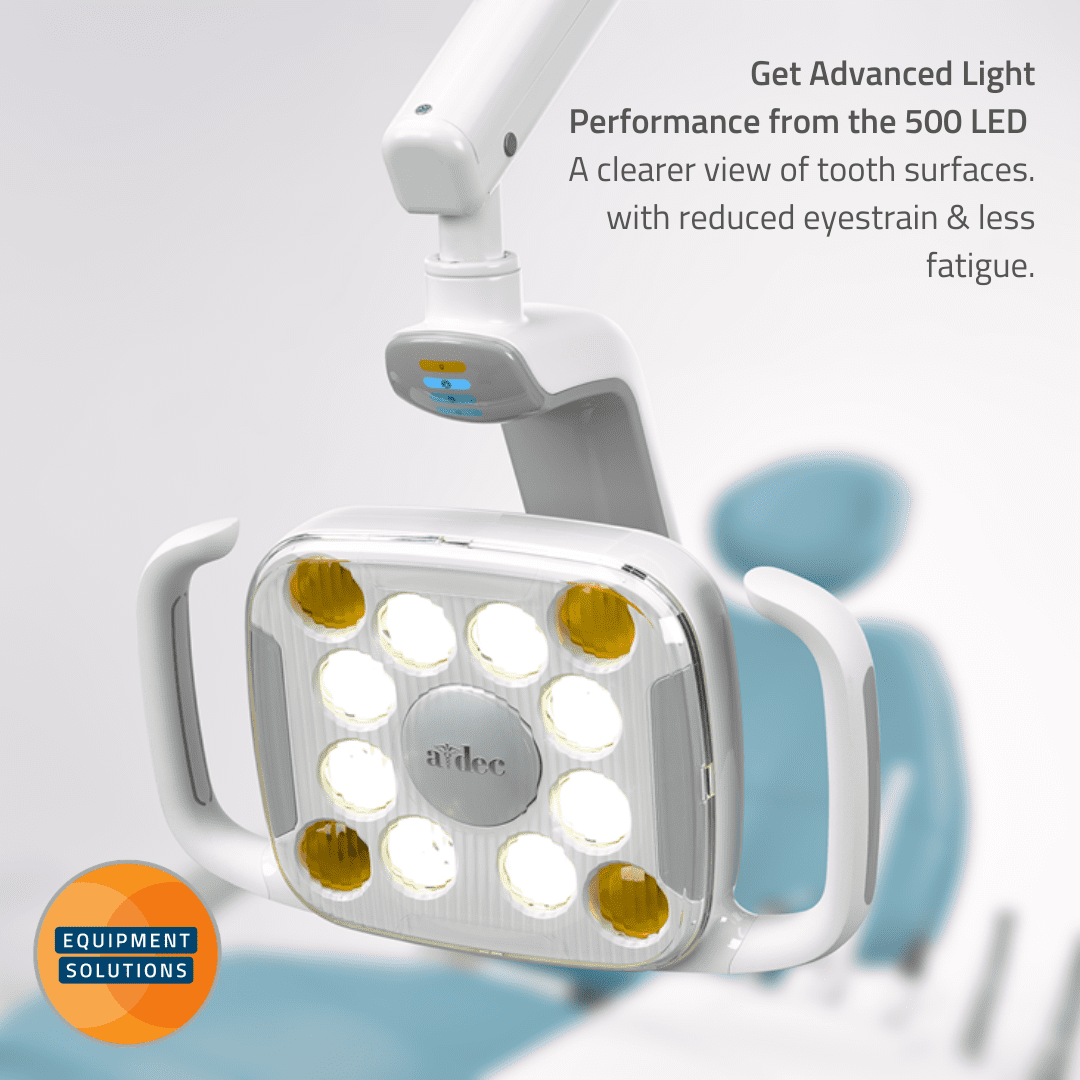

  • A-dec 500 LED Operating Light offers a stadium style light to reduce shadowing

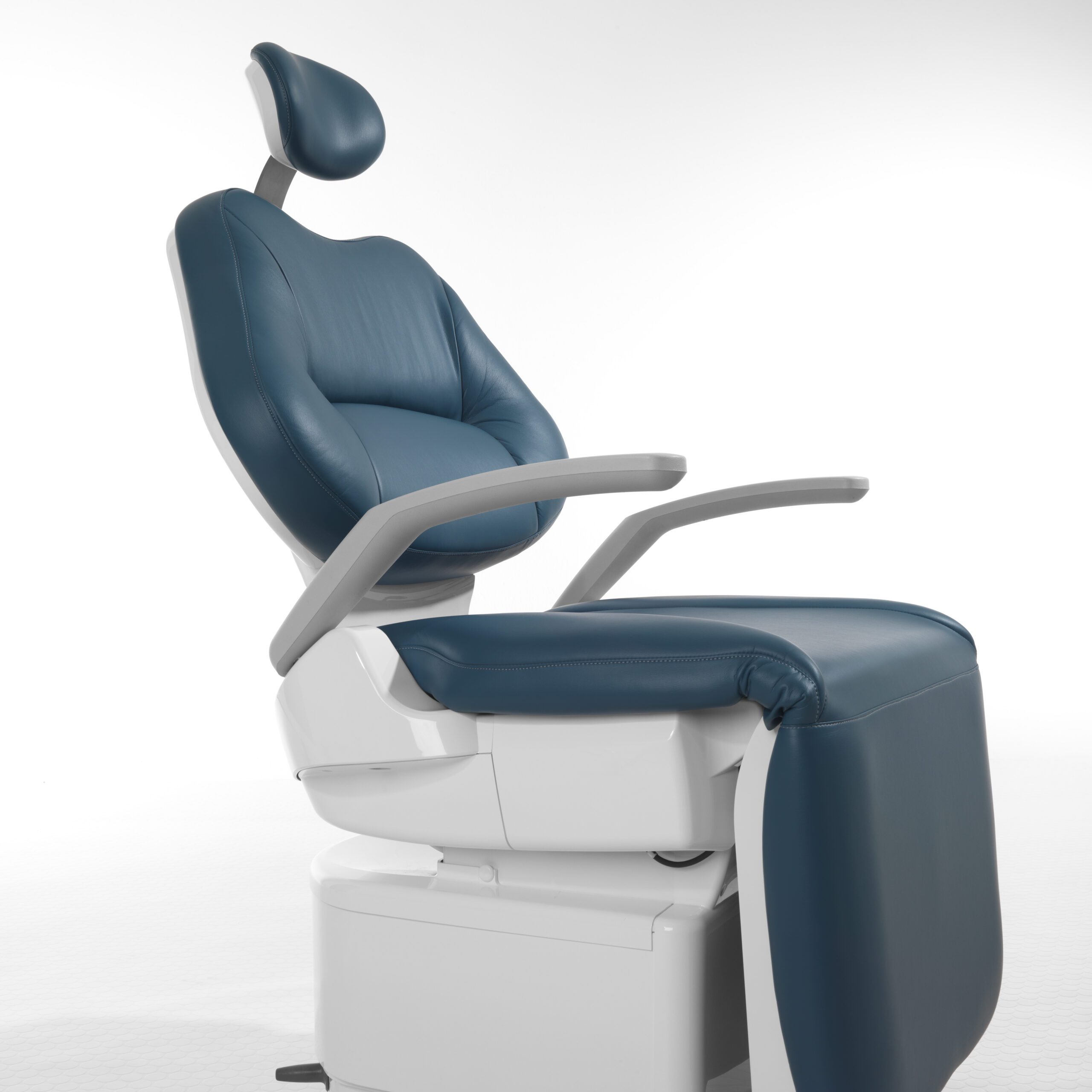

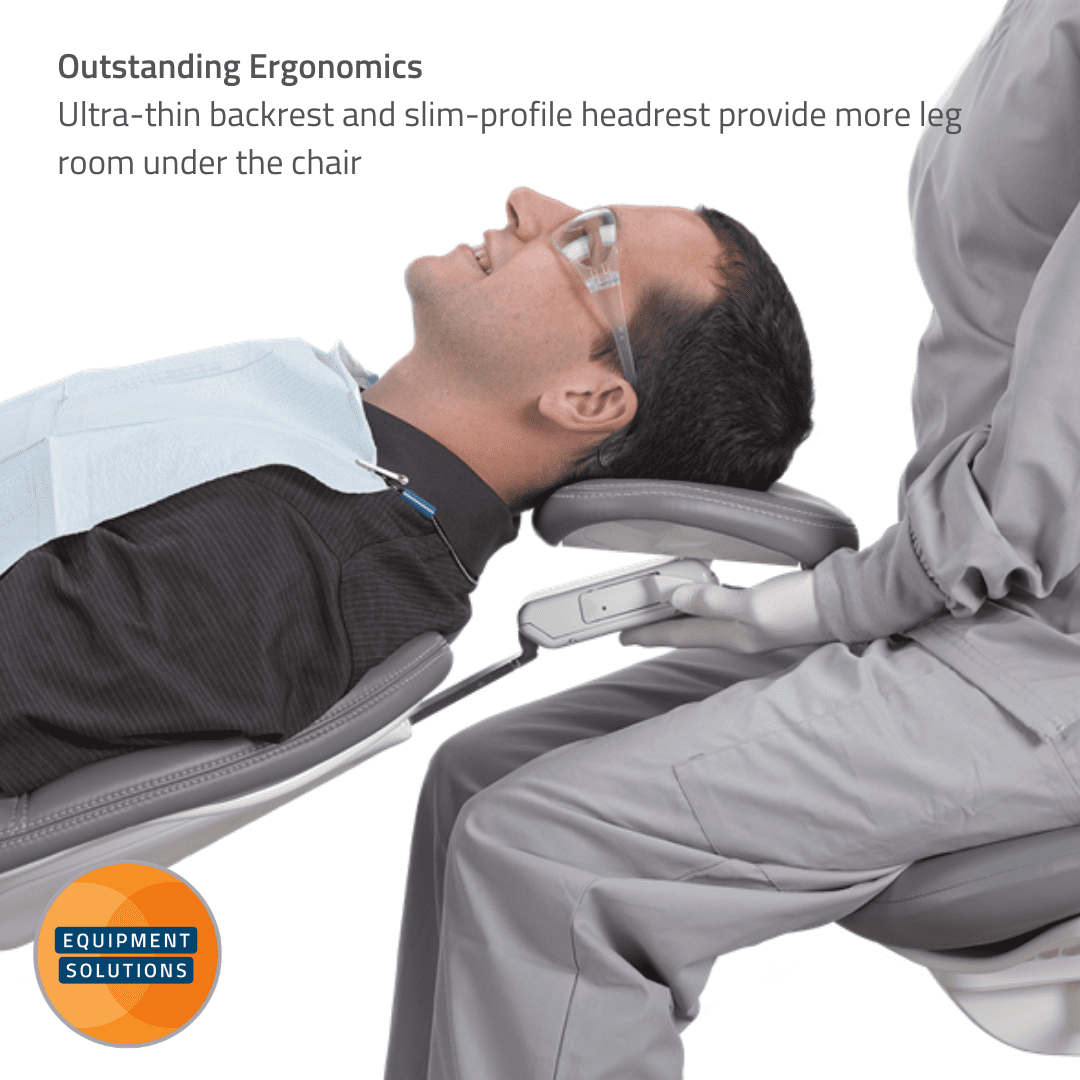

  • A-dec 500 Dental Chair with its ultra-thin flexible backrest and double articulating headrest
  • A-dec upholstery brochure

The A-dec 500 Dental Chair has set dentistry's hallmark for treatment room comfort, reliability and performance, since its original manufacture in 1996. The 'legend' that is the 500, gives you optimal ergonomics supported by a full range of integrated possibilities.

The 500's Treatment Centre has been redesigned in 2019 and is now known as the A-dec 500B.  Now with a completely new delivery head for traditional hanging or continental, the dental chair is built to provide even more flexibility for integration in the future. Other outstanding features of this unit include:

Designed to look after you and your Health

The ultra-thin flexible backrest and the ergonomic baseplate allows you to work in a comfortable working position, whether working from behind or from the side. The chair features a 60-degree swivel with brake and the chair raises to a high point of 800mm which is ideal for those who like to work in a standing position.

Outstanding Level of Patient Comfort

The 500 has always been known for its exceptional level of patient comfort.  The precision hydraulic motion cradles your patients and ensures a smooth and assured ride. The pressure-mapped tailored upholstery ensures support across the whole length of the body and the double articulating headrest enables comfort and positioning for the dentist.

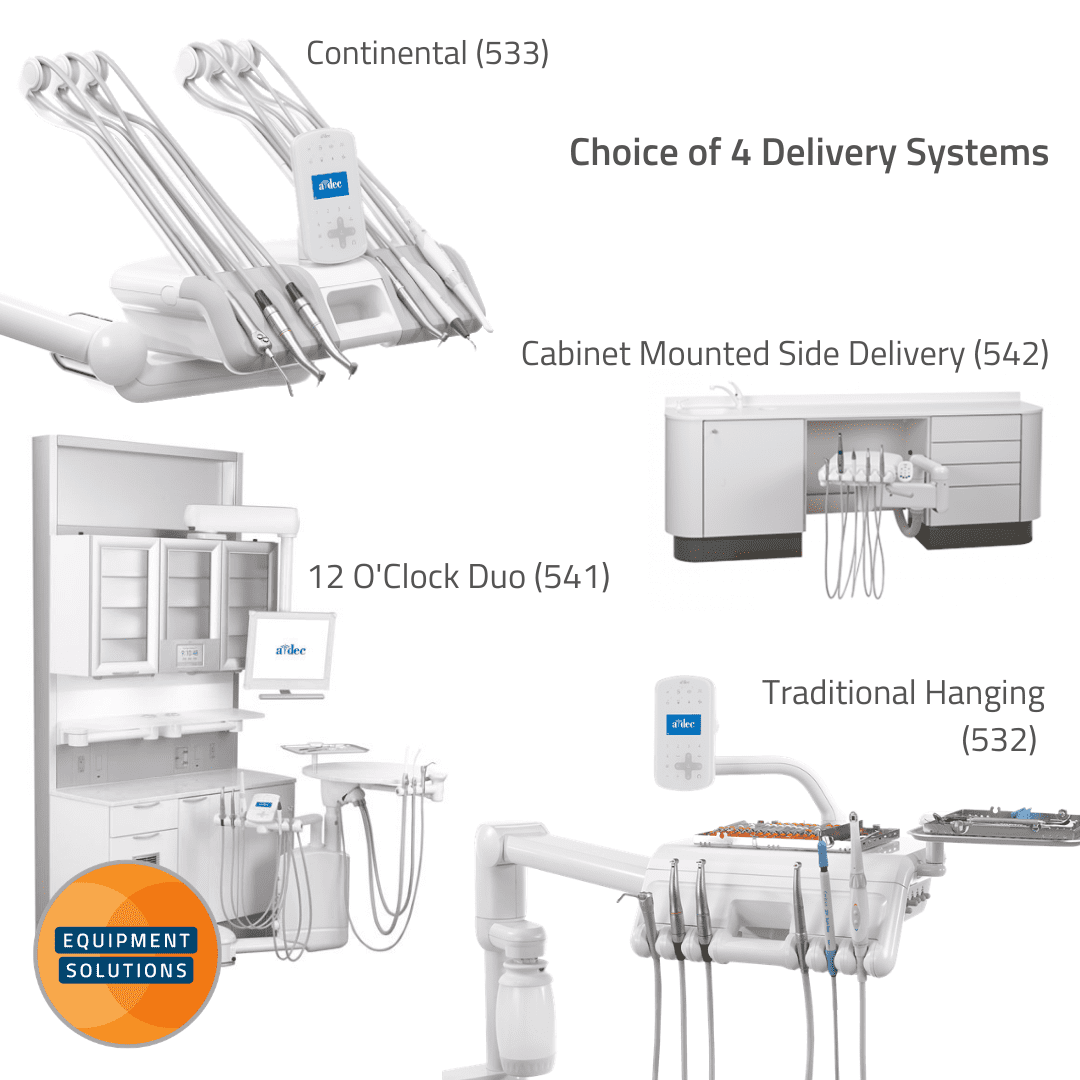

Choice of 4 Delivery Options

A-dec offer options for delivery to suit the way you and your team work, within the space you have. Opt for the Traditional Hanging or Continental delivery on the chair. Alternatively, talk to our surgery design team about a rear 'duo' system or side cabinet mounted system.

Incredible Lifting Capacity

Now with an increased weight capacity the chair now holds up to 35 stone (227 kg), more than any other on the market.

The A-dec Difference

The quality of your dental equipment directly impacts profitability. Dentists consistently rank A-dec dental equipment as the highest in quality.

A-dec's attention to detail is second to none. With 95% of all parts being made in their own factory in Oregon, they can assure their customers quality, craftsmanship and reliability in every product. Understand in detail the process and materials behind A-dec's manufacturing process by viewing their 'Experience the Difference' board in showrooms.

A-dec Dental Chair

Access and Efficiency

With the delivery head has an extended reach for preparation behind the headrest. Ensuring clear entry and exit for your patients.

A Choice of Upholstery

Tailored upholstery is available in luxury sewn or seamless formed in a large choice of colours. See the image above for options.

Delivery with Visibility

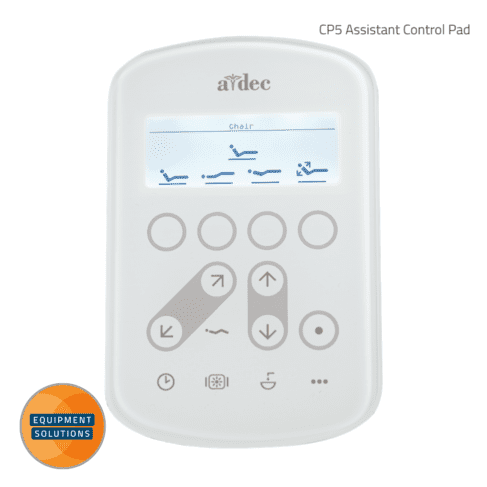

The delivery head incorporates a 'positionable' deluxe touchpad for precision viewing. The Deluxe Plus Touch Pad is easy to navigate.

Ambidextrous Delivery

Flexibility for your surgeries ensure the treatment centre can easily be changed from right to left and left to right.

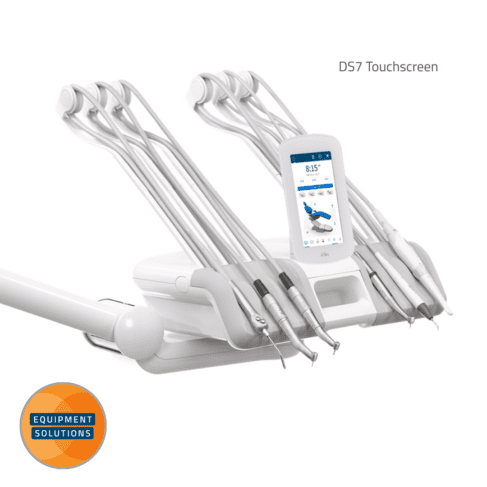

Taking Continental Rod Type Delivery to the Next Level

The longer instrument tubing on the continental version reduces in-procedure resistance and fatigue. With a side-to-side movement also handpieces remain balanced without any pull back.

Large Working Area

The new delivery can hold up to two trays and there is a central put down also.

LED Coolant indicator

When the handpieces are lifted out of the holder, the indicator will show where to replace without second-guessing.

One-handed Adjustments

Grasp the handle and the flex arm brake automatically releases, allowing you to effortlessly position the delivery system with one hand.

Adjustable Handpiece Holders

Ergonomics are considered with every aspect of the chair design, including the ability to tilt the angle of your handpieces for easy grip and can be returned easily.

6 Position Control Head

With up to six outlets on both the traditional and continental systems.

Flexible Integration to support you now in the Future

Being able to upgrade your unit with the latest technology is crucial. One example of this W&H's Advanced Air. This award winning hadpiece is one of the world's first air high-speed handpieces with an adjustable bur speed and constant removal rate - even with increased pressure.

Exceptional illumination

The A-dec 500 LED light flood the oral cavity with light with a maximum intensity of 30,000 lux, most dental lights today only provide a light intensity of up to 25,000 lux, so a truly superior light. See .... for more details on A-dec's operating light.

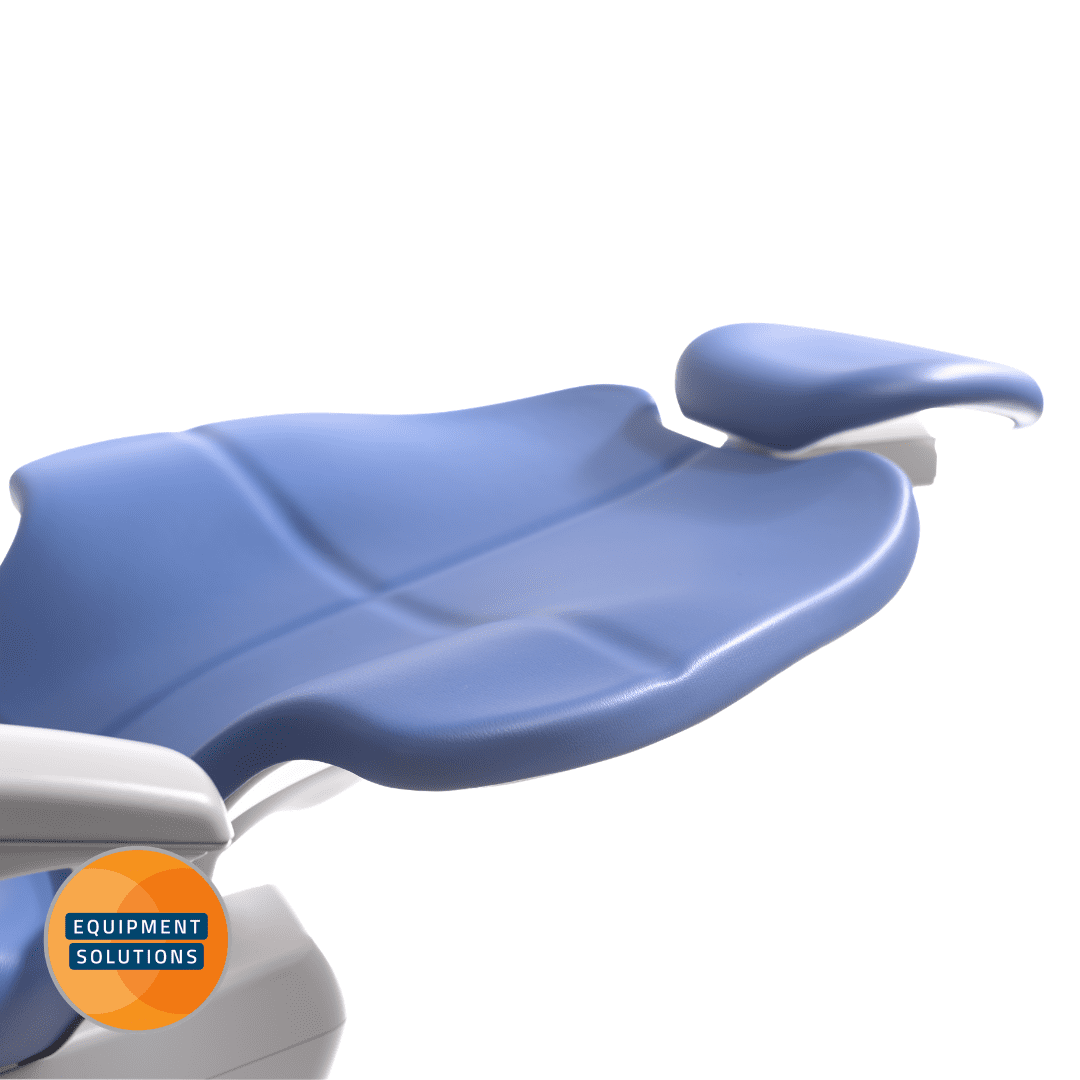

The A-dec 500 offers seamless upholstery
A-dec 500 Chair (Base)
Base Height Range

Low Point: 13.5" (343mm) 14.5" (368mm) with A-dec 300 dual mount. High point: 31.5 (800mm)


Ultra-thin 1" (25mm) flexible backrest* (*based on formed upholstery)


Dual-articulating Gliding Headrest, Lever Release.


2-Position Armrests

Chair Swivel

60" (30" each side of center)

Power Supply


Chair Control

Touchpad on delivery system or foot switch

Lift System

Start/Stop Hydraulic Drive

Mount Style

Radius Left / Right dedicated left or right post mount.

Upholstery Options

Sewn or Formed

Ul Load Rating

UL rated to 500 lb (227 kg) maximum patient load (load rating is based on UL requirement of 4X (2000 lb/907 kg) overload static testing)

A-dec 500 Led Dental Light
Colour Temperature


Light Pattern

3.8" x 5.7" at 27.6" focal distance (95 mm x 145 mm at 700 mm)

Light intensity (mode selection)

Low: 15,000 lux (1394 fc) Medium: 25,000 lux (2323 fc) High:30,000lux(2787fc) Cure-safe:23,000lux(2137fc)yellowlight

BTUs per hour


Power Consumption


Light Control

Touchpad, local control, or automatic on/off via chair presets

Light Source Life Expectancy

>40,000 hours

A-dec 461 Support Center

Cuspidor (with programmable cup fill and bowl rinse timer)

Vitreous china


Cuspidor rotation



Water system

None2 Litre Bottle

Accommodates amalgam separator


Yes (amalgam separator or water bottle)

Mount style

Rear left/right hub mount


Light / Monitor Mount



A-dec 482 Monitor Mounts
Tilt Style


Maximum flat-panel monitor weight

20lbs (9 kgs)

Monitor Mount Tilt


Mount Location

Light Post

The A-dec 500 has an extensive list of factory options that can be added to your unit:

ManufacturerUpgrade Type
ActeonSoproCare Camera Handpiece
ActeonSoproLife Camera Handpiece
ActeonUSB Mini Camera Docking Station
ActeonActeon Mini LED Curing Light
NSKEA-53 Micro Motor
DurrCAS1 Amalgam Separator
W&HAdvanced Air
W&HPrimea RK-97 5 x LED Turbine
W&HPrimea RG-97 1 x LED Turbine
W&HPrimea RQ-24 Coupling with Light and Integrated Spray
W&HPrimea RQ-34 Coupling with Light and Adjustable Integrated Spray
A-decSpittoon Valve
A-decLarge Tray Holder
A-decAdditional Non-switched Assistant’s Holder
A-dec561 Cuspidor Support Centre
A-dec581 Monitor Mount (for 561 Cuspidor Support Centre)
A-dec482 Monitor Mount
A-dec376 LED Ceiling Light
A-dec375 LED Wall Light
A-dec377 LED Track Mounted Light
A-dec576 LED Ceiling Light
A-dec575 LED Wall Light
A-dec577 LED Track Mounted Light
A-dec533 Continental Delivery Systems (inc. Deluxe Plus T/ Pad)
