Description

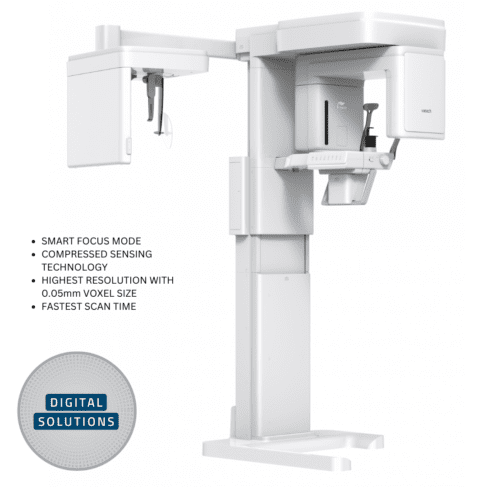

Vatech Smart X CBCT

Top-notch diagnostics, sleek design, and user-friendly operation, all in one.

Categories: CBCT (Cone Beam Computed Tomography), CBCT (Cone Beam Computed Tomography)

  • Vatech Smart X CBCT
  • Vatech Smart X CBCT
  • Vatech Smart X CBCT

The Vatech Smart X offers top-notch diagnostics and user-friendly operation all in one.

Smart Focus Mode

Comprehensive planning for complex cases in one go. Smart Focus is a revolutionary technology that captures 5 high-resolution images in just one scan.

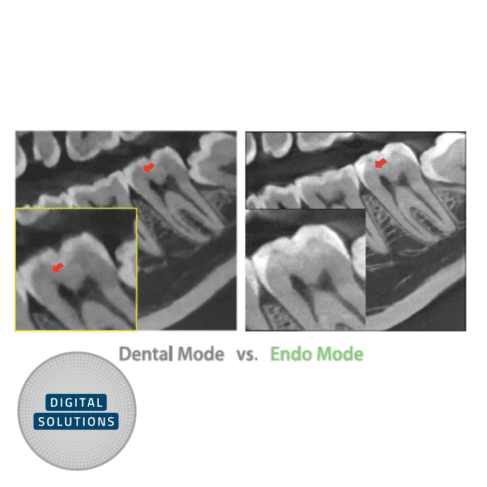

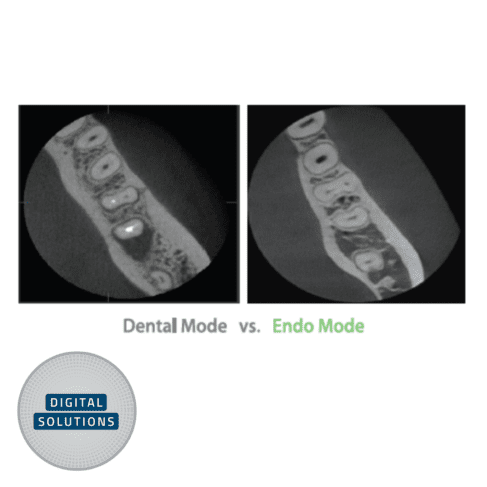

Endo mode with high resolution

With its 4cm x 4cm volume mode and 50 micron voxel size, the Endo mode will optimise the treatment of highly focused regions of interest. It is ideal for endodontic use because the dentist can achieve an extraordinary image in a high-resolution voxel size.

Multi FOV Selection

A standout feature of the Smart X is its multi-FOV selection. The Multi FOV option allows users to select the optimum FOV mode while minimising exposure to areas that are not in the region of interest. The selection includes the following FOV sizes for diagnostic needs: 4×4, 8×5, 8×8, 12×8.5, and 12×14.

Parts Warranty

5 Years Full Parts Warranty

Vatech holds the top position globally as a Korean manufacturer specializing in high-end imaging systems and software. They are known for their quality products that are recognised as some of the best in the industry.

Green Scan Time

The Smart X scan time enables faster workflow through a faster scan time. Although quick, the diagnostic images produced are of excellent, detailed quality, enhancing reliability and allowing for more accurate treatment planning.

Compressed Sensing Technology

Vatech dramatically improves its image quality with much less artifact and noise via its Compressed Sensing Technology (CST), iterating its reconstruction process 10 times more than the normal amount to depict the object’s true representation.



The specification of Vatech Smart X is:
Function:

CT + Pano + Ceph + Model Scan

Focal Spot Size

0.5mm

CT FOV Size:

Endo (4x4), 8x5, 8x8, 12x8.5, Smart Focus, Double Scan (12x14)

Voxel Size

4x4 - 0.05mm

8x5 / 8x8 - 0.12mm / 0.2mm

2x8.5/Double Scan/Smart Focus: 0.2mm / 0.3mm / 0.07mm

Scan Time

Pano - 4.0 sec / 14.1 sec

Ceph - 1.9 sec / 4.9 sec

CBCT - 10.0 sec (8x5 - 8x8); 15.5sec (12x8, Smart Focus, Double Scan); 13.0 sec (Endo)

Gray Scale

14 Bit

Tube Voltage / Current

60 - 99 kVp / 4 - 16 mA

Weight

Without CEPH Unit - 162.9 kg (359.13 lbs - without base) / 217.9 kg (480.38 lbs - with base)

With CEPH Unit - 187.9 kg (414.25 lbs - without base) / 242.9 kg (535.50 lbs - with base)

Dimensions

With CEPH Unit - 1905.5 mm (L) x 1374.9 mm (W) x 2315.4mm (H) - without base / 1905.5 mm (L) x 1374.9 mm (W) x 2345.4mm (H) - with base

Without CEPH Unit - 1085.0 mm (L) x 1343.5 mm (W) x 2315.4 mm (H) - without base / 1085.0 mm (L) x 1343.5 mm (W) x 2345.4 mm (H) - with base



Site survey: Recommended
