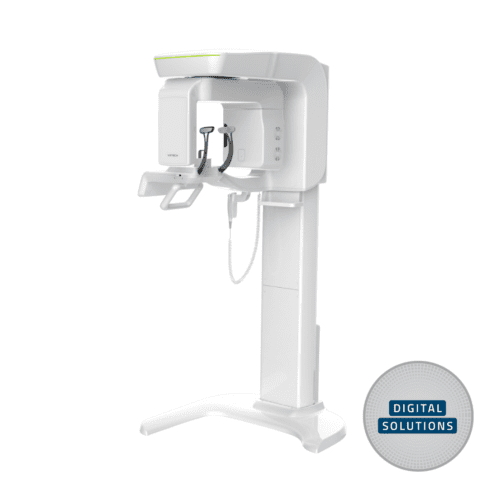

Vatech Smart Plus CBCT

One Scan, Two Images

Categories: CBCT (Cone Beam Computed Tomography), CBCT (Cone Beam Computed Tomography)

  • Vatech Smart Plus CBCT Unit
  • Vatech Smart Plus CBCT Unit
  • Vatech Smart Plus CBCT Unit
  • Vatech Smart Plus CBCT Unit
  • Vatech Smart Plus CBCT Unit
  • Vatech Smart Plus CBCT Unit
  • Vatech Smart Plus CBCT Unit

The Vatech Smart Plus offers 2D and 3D in one viewer, and which helps patients to understand the images.

Innovative Compressed Sensing Technology

The Vatech Smart Plus offers innovative compressed sensing technology for a more accurate diagnosis; 3D image quality is dramatically improved based on the innovative image reconstruction technology.

One scan, Two Images

One scan with the Vatech Smart Plus gives you not just a CT image, but also an Auto Pano image. This means patients who require both images do not need to undergo two X-ray scans. Also, CT and Auto Pano images are displayed within one viewer.

Vatech is a South Korean manufacturer that specialise in digital imagery products. They are known for their quality products that are recognised as some of the best in the industry.

Vatech Logo

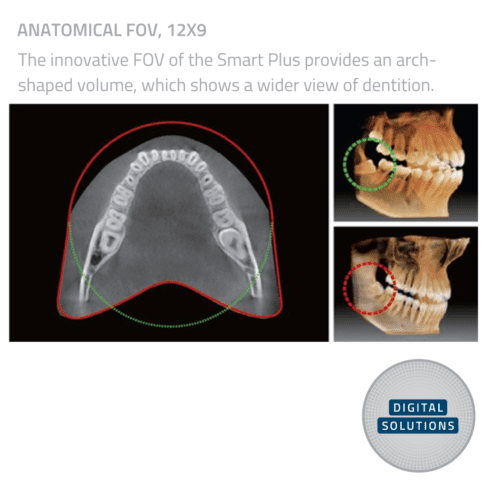

The innovative FOV of Smart Plus provides an arch-shaped volume, which shows a wider view of dentition compared to other devices with the same FOV.

1) CSMART Innovation for Accurate Diagnosis

ANATOMICAL FOV, 12X9: The innovative FOV of the Smart Plus provides an arch-shaped volume, which shows a wider view of dentition compared to other devices of the same FOV. Normally, a FOV 10x8.5 image shows tooth #8. However, when the tooth is lying on its side, there is a high possibility that the tooth will be cut out of the image. The "arch-shaped volume" eliminates this possibility and shows the hidden dentition area.

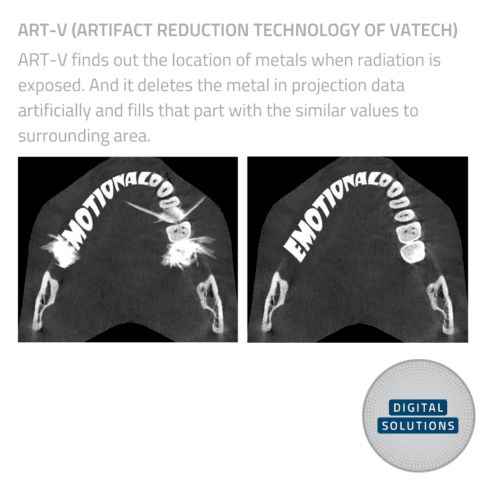

ii) ART-V (Artifact Reduction Technology of Vatech)

ART-V finds out the location of metals when radiation is exposed. And it deletes the metal in projection data artificially and fills that part with the similar values to surrounding area. At the same time, it remembers the original location and status of metals and then it inpaints the area with new value which has no streaks.

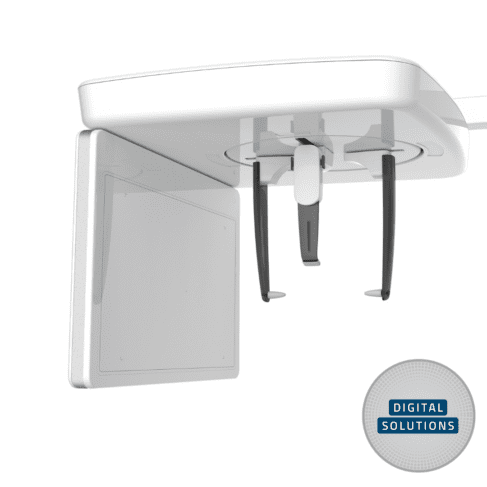

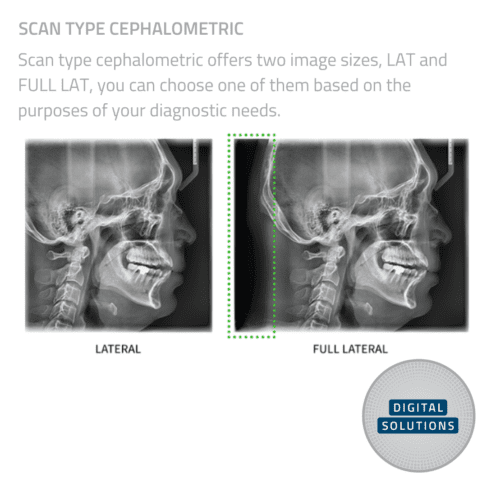

2) Scan type Cephalometric

Scan type cephalometric offers two image sizes, LAT and FULL LAT, you can choose one of them based on the purposes of your diagnostic needs. Provide specialized high quality images to suit Full lateral gives 30% larger images and the occipital orthodontics and maxillofacial surgeries' area of the patient for comprehensive diagnosis. (optional)

Vatech Logo
Specifications of the Vatech Smart Plus:

CT(with Auto Pano) + Pano + Ceph + Model Scan

Focal Spot

0.5mm (IEC 60336)

CT - FOV Size(cm)

10x8.5 (Anatomical 12x9) / 10x7 / 5x5

Voxel Size


Scan Time

CT: 18 sec

Pano : 14.1sec / 7sec(Option with Magic PAN)

Ceph : 1.9sec / 3.9sec

Gray Scale

14 bit

Tube Voltage/Current



Without Ceph unit: 137kg(302.0 lbs)

With Ceph unit: 62kg(357.1 lbs)

Site survey: Recommended
