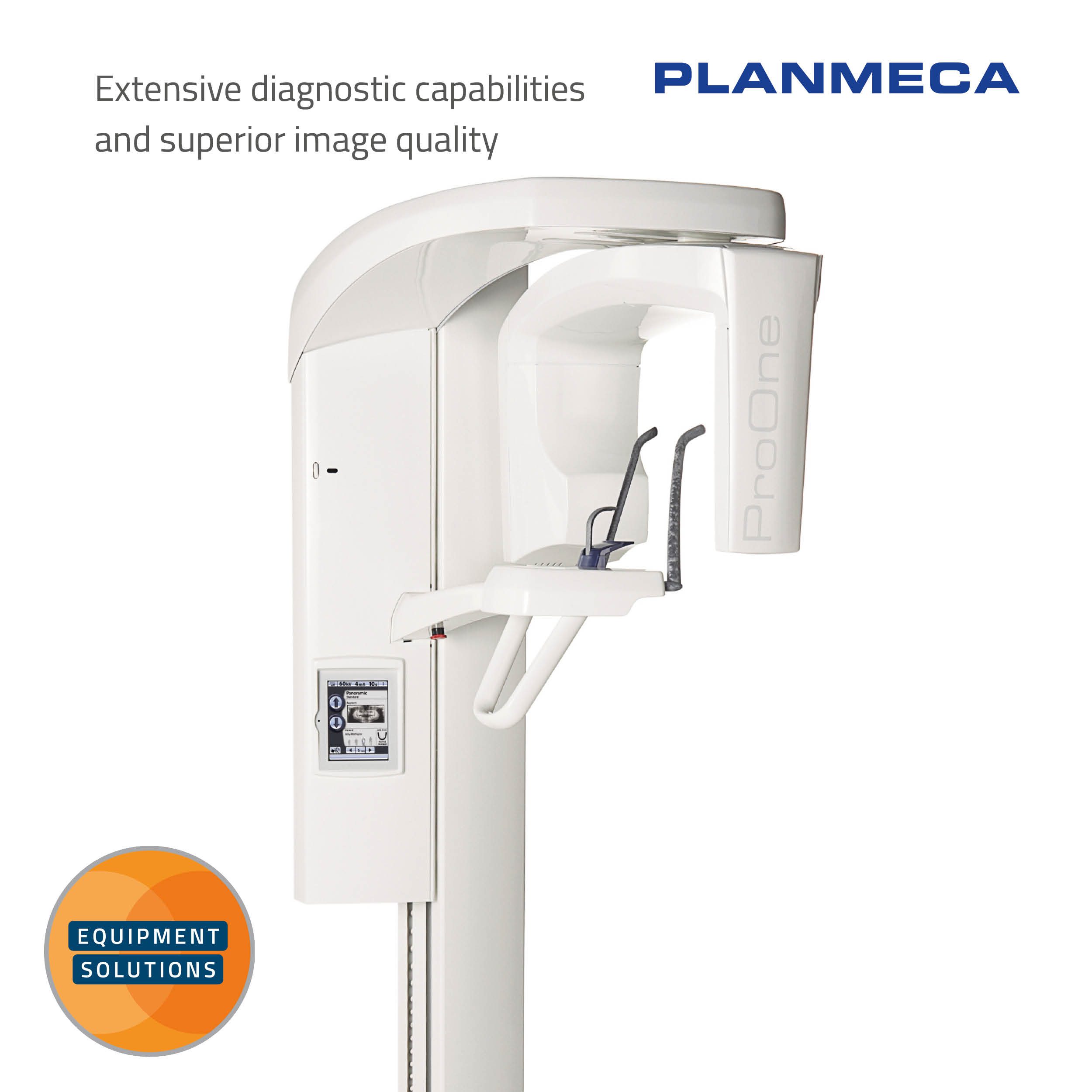

Planmeca ProOne OPG

Simplicity at its finest

  • Planmeca ProOne OPG is a powerful 2D imaging sytem
  • Planmeca ProOne OPG works alongside the easy to use Romexis software

The Planmeca ProOne OPG is a 2D digital panoral imagng system.  It has been designed with simplicity in mind and incorporates diagnostic capabilities and superior image quality into a compact, easy-to-use package.

Image Quality

Clean, Crisp Images

Optimal Imaging Programs

An array of preset programs for easy to use diagnosis.

  • Standard Panoramic
  • Bitewing
  • Horizontal and Vertical segmenting for panoramic program
  • Lateral TMJ
  • PA TMJ
  • PA Sinus and Lateral nonrotational sinus
  • Lateral- PA TMJ
  • Cross-sections

Planmeca was established in 1971 and is a Finnish manufacturer of high-tech dental equipment, such as 3D and 2D digital imaging devices, dental units, CAD/CAM solutions, and software. Planmeca offer dental clinics a completely digital solution, based on the capability to network all digital dental equipment with one software platform.

The Planmeca ProOne OPG has these additional benefits:

Autofocus – for perfect panoramics every time

The Autofocus feature automatically positions the focal layer using a low dose scout image of your patients central incisors.

Easy to Use, Practical User-interface

Planmeca ProOne is equipped with a full-colour graphical user interface that helps guide you through procedures with clear texts and symbols. All settings are logically organised and easy to understand, which speeds up the imaging process and lets you focus on communicating with your patient and positioning them correctly.

Easy Patient Positioning

You can monitor your patient from the front and the side, with positioning further assisted by Planmeca's triple laser beam system that indicates the correct anatomical positioning points. This ensures for crisp accurate images everytime.

Specifications for the Planmeca ProOne OPG:
Generator

Constant potential, resonance mode high frequency 60–80 kHz

X-ray tube

D-058SBR

Focal spot size

0.5 x 0.5 mm (IEC 336)

SID

480 mm (19 in.)

Total filtration

min. 2.5 mm Al eq.

Anode voltage

60–70 kV

Anode current

2–7 mA DC

Exposure time

2–10 s

Line voltage

100–132 V~ 50/60 Hz, 180–240 V~ 50 Hz

Regulation

±10 % (automatic)

Line current

8–16 A

Power uptake

max: 850 W

Chin rest level

95–178 cm (37.4–70 in.)

Colour

White (RAL 9016)

Weight

67 kg (148 lbs)

Site survey: Recommended
