Description

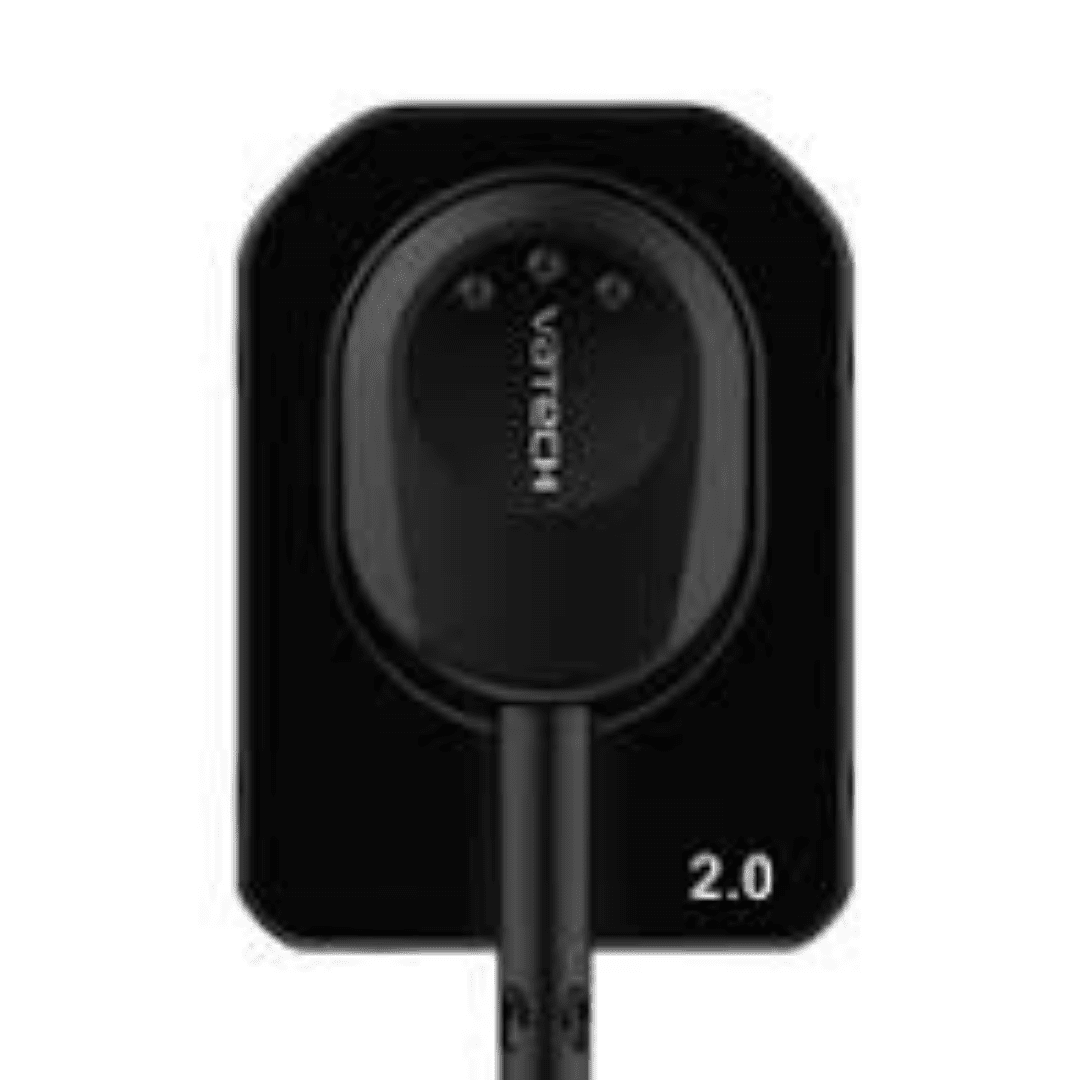

Vatech X-Ray Sensor EzSensor Classic

Higher Resolution & Comfort

  • Vatech HD Sensor offers three different sizes
  • Vatech X-ray Sensor HD offers clear and crisp radiographs
  • Vatech HD X-ray Sensor offers has rounded corner to support positioning and comfort
  • Vatech HD X-ray Sensor offers clear and crisp radiographs
  • Vatech HD X-ray Sensor offers quality imagery with a slim design

The Vatech X-ray Sensor, the EzSensor HD has been designed with the patient in mind due to it being ultra-slim enabling easy positioning. Fast, flexible and easy X-Ray images in real-time. Extend the benefit of direct digital sensors to your dental practice.

A high-definition Digital Sensor is intended to collect dental x-ray photons and convert them into electronic impulses that may be stored, viewed and manipulated for diagnostic use by dentists.

Focus on Comfort

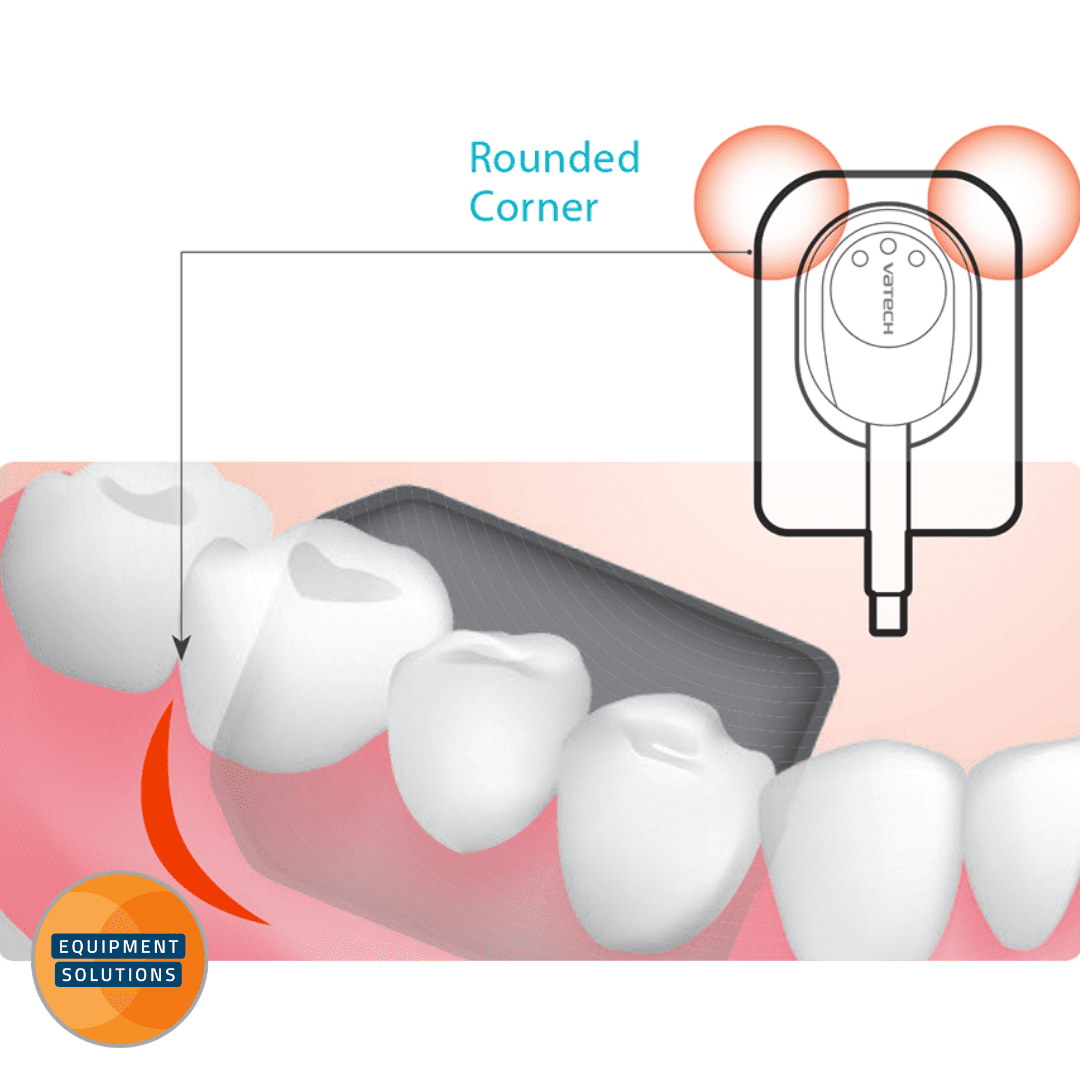

Slim, CMOS with its cut corners and tapered edges ensure that patients are as comfortable as possible. Placing and positioning a sensor in a patient’s mouth can still be challenging but Vatech found that the thickness of the sensor relates to the pain caused.

That’s why Vatech have developed a sensor that is ultra-slim sensor but still carries the top of the range technology for the best results. The rounded corner design also helps prevent pain as it’s designed to not agitate the delicate soft-tissue inside the mouth.

Filters for Your Perfect Image & Your Treatment

The EzSensor HD provides a crustal clear image that is used for accurate diagnosis and treatment planning. With a theoretical resolution of 33.78 lp/mm, the HD Sensor provides the necessary high-resolution images.

New Contrast Filters switch between seven new contrast filters to find your perfect diagnostic images.  Higher contrast filters can be utilized for periodontics, while lower contrast filters can be used for detection and restorative dentistry. With the HD Sensor, you always have these filters at your disposal.

There is a wide range of exposure settings, capturing a consistent and diagnosable image. With Vatech’s high sensitivity sensor, you can capture all diagnosable images under any conditions, even when using old X-Ray sources. Patients can get the advantage of the lower radiation.

5 Year Full Parts Warranty

The specification of Vatech EzSensor HD is:
Detector:

CMOS

Pixel Size

14.8 um

Theoretical Resolution:

33.78 lp/mm

Dynamic Range:

12 bit

Active Area

Size 1.0 _ 20 x 30mm

Size 1.5 _ 24 x 33mm

Size 2.0 _ 26 x 36mm

Dimensions (WxLxT)

Size 1.0 _ 25.4 x 36.8mm (1.00 x 1.45 inch)

Size 1.5 _ 29.2 x 39.5mm (1.14 x 1.55 inch)

Size 2.0 _ 31.3 x 42.9mm (1.23 x 1.69 inch)

Thickness:

4.8 mm (0.19 inch)

Cable Length:

2.7m
