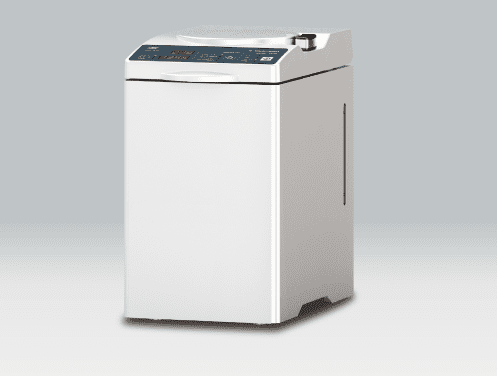

NSK iClave Mini Autoclave

A Small Compact Class S Handpiece Unit

  • The NSK iClave mini is a small and convenient autoclave is ideal for a back up.
  • The NSK iClave Mini is a handpiece autoclave.
  • Easy to use screen of the NSK iClave Mini

The NSK iClave Mini is a handpiece steriliser that is compact in size, yet large in capacity while at the same time running fast and efficient cycles.

The 'Mini' complies with Europe’s Class S sterilisation standard.

Lightweight and Compact

The NSK iClave Mini only weighs 15.5kg. A plug and play unit that can fit into even the smallest decontamination room.

NSK are industry leaders from Japan, and are very well respected amongst the dental community. NSK can assure their customers quality, craftsmanship and reliability in every product. They have a strong UK base.

Effective Sterilization

The iClave mini complies with Europe's Class S sterilisation standard.
It repeatedly de-aerates to sterilize even the inside of a handpiece.

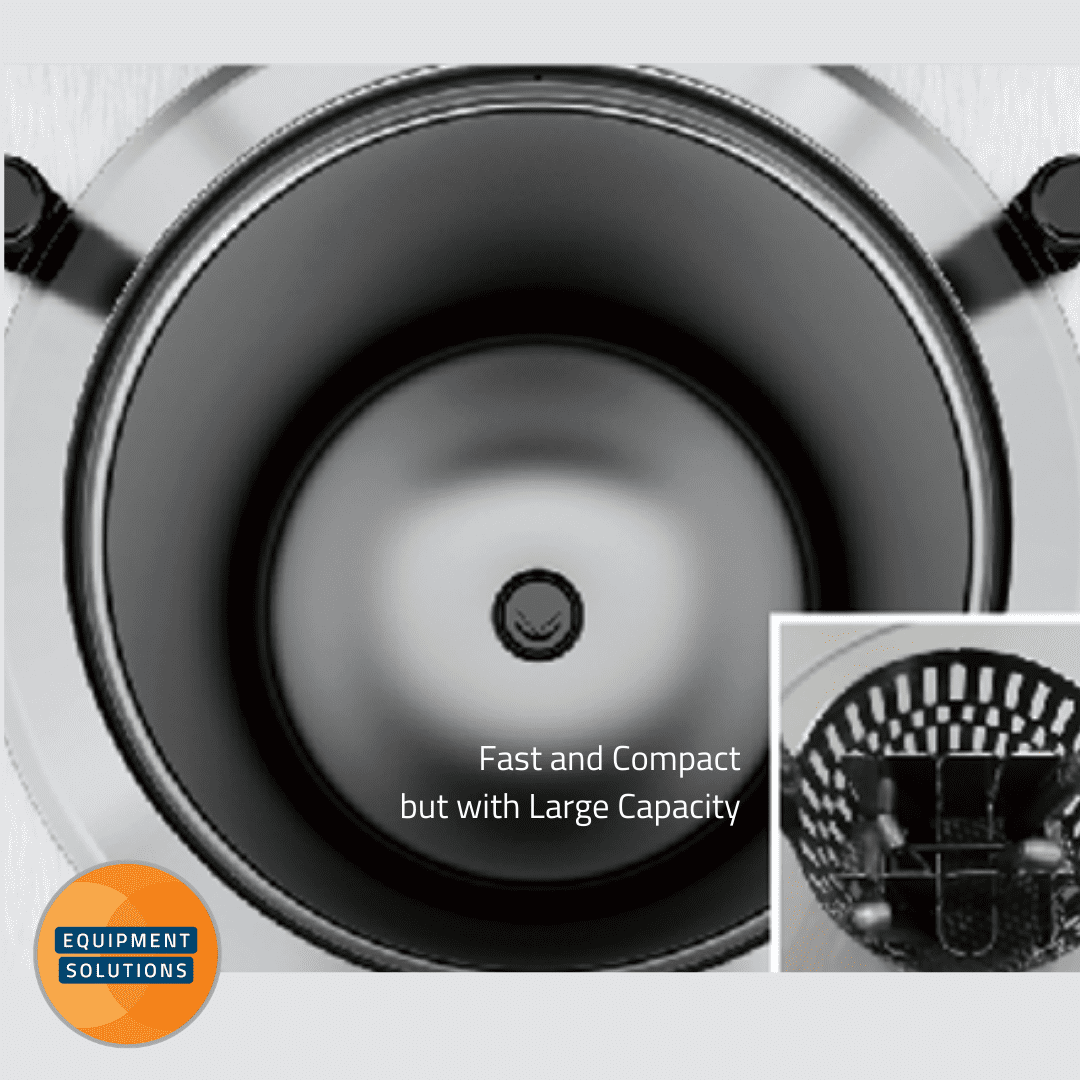

No Compromise on Capacity

The new direct-heating technology around the 2.5litre chamber aims to work and perform like the combination of copper chamber and adaptive heat system. iClave mini is compact in size yet large in capacity while at the same time running fast and efficient cycles.

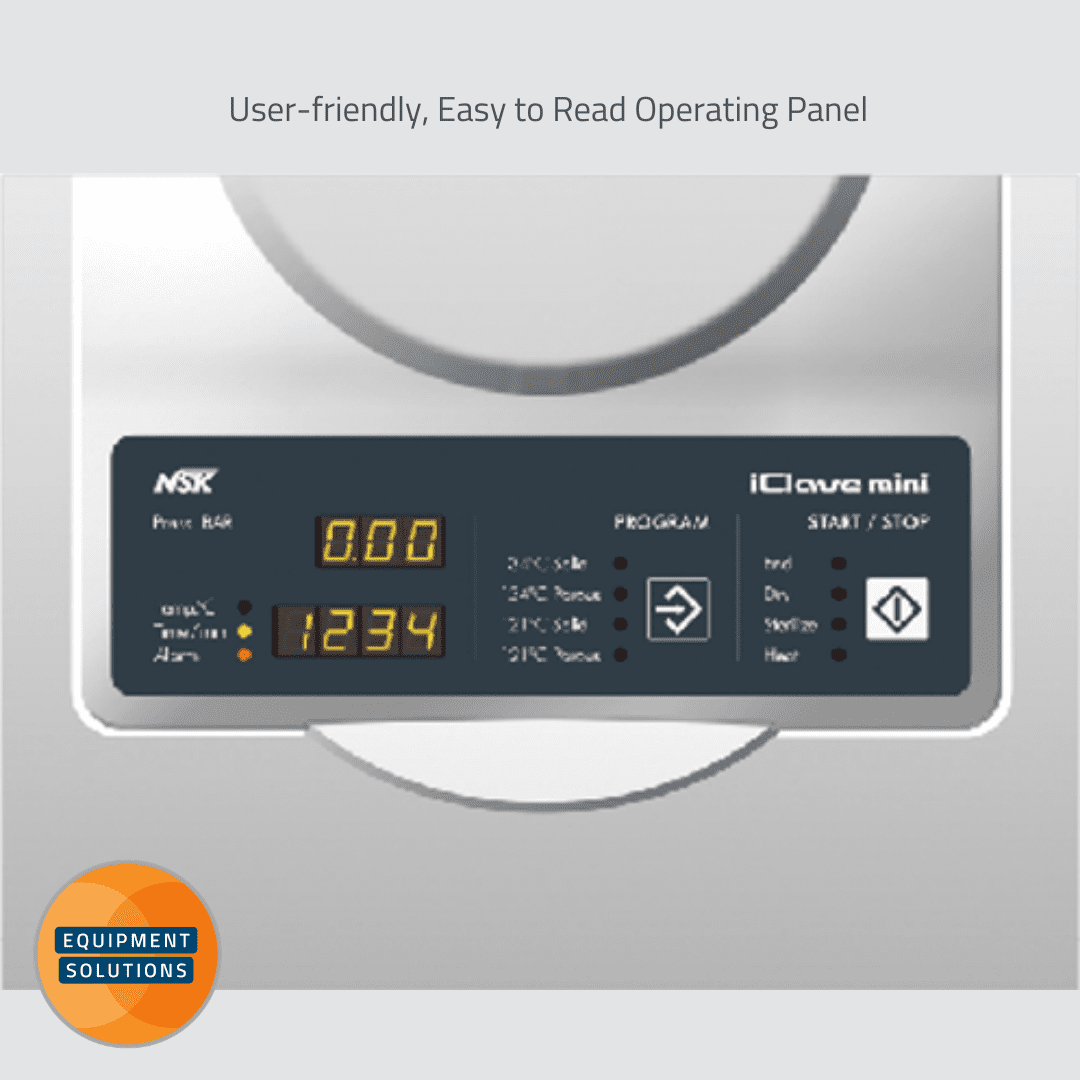

Operating Panel

Very easy to use Operating Panel due to its sophisticated design and excellent visibility. The panel is simple to use and maintain without compromising on effectiveness. Colours change with accordance to the conditions.

User-Friendly Design

NSK's iClave Mini has been designed with ease of use in mind. The smooth, seamless design inside and out as well as with the design of the control panel make it extremely user friendly in every respect.

1 Year Warranty

A Compact Unit for your Decontamination Room
The Specification of the iClave Mini
External Dimensions

W 210 x D 320 x H 360 mm

Chamber Dimensions

Ø130 x 200 mm

Chamber Capacity

2.5 Litre

Net Weight

15.5 kg

Maximum Power Consumption

700 W

Supply Voltage CE

230 V 50Hz

Air Expulsion System

Pressure Deaeration

Max Load Solid

1 kg

Max Load Porus

0.5 kg

PROGRAMS PARAMETERS CLASS
1134°C SOLID134°C4 minS
2134°C POROUS134°C14 minS
3121°C SOLID121°C20 minS
4121°C POROUS121°C30 minS
