Description

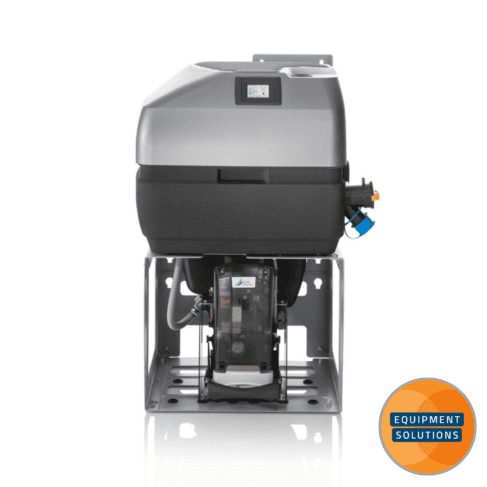

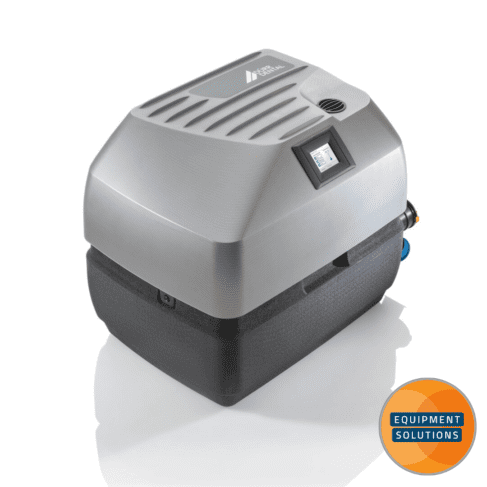

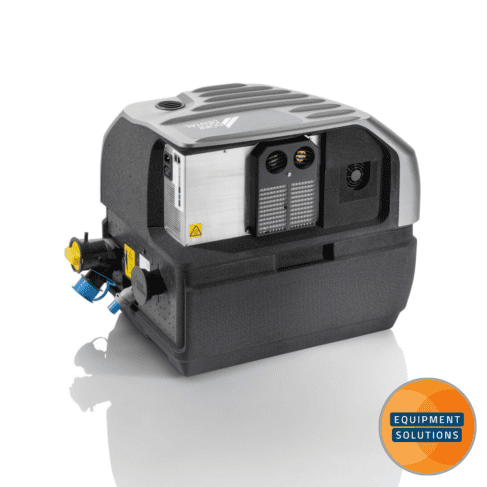

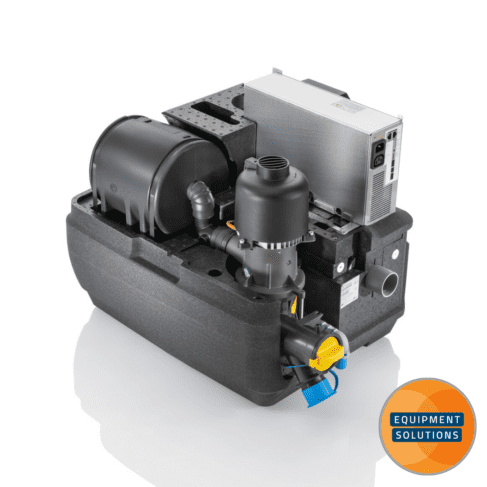

Durr Tyscor VSA4 Suction Pump

Energy-efficient centrifugal suction motor and a separate separation stage for four users

Category: Multiple Surgery Suction Pumps

Durr Tyscor VSA4 Suction Pump

For 4 users
  • Subject to local engineering
  • Requires power connection
Lead time: Next day delivery

The Durr Tyscor VSA systems integrate vacuum generation and separation into one compact unit. Pre-configured with hose lines, connections, and a control unit, these systems are easy to incorporate into any practice. They are ideal for both new installations and upgrades of existing systems. Additionally, the centralised suction and separation enhance efficiency compared to treatment unit systems, reducing or even eliminating the need for additional automatic separators and associated costs.

Energy Efficiency

The radial technology of the Tyscor range offers exceptional performance, especially regarding energy consumption. Its load-dependent automatic adjustment ensures consistent suction at all times while optimizing energy use, resulting in significant cost savings.

Quiet Operation

The Tyscor range is engineered for quiet performance, featuring a housing made of noise-absorbing foamed plastic and a design specifically focused on minimizing noise. As a result, these units are the quietest in their class, even without additional soundproofing measures.

Plug & Play

The compact and modular design of the Tyscor range simplifies both commissioning and setup, making installation straightforward. Maintenance is also quick and easy. Additionally, the system operates on a 230 V single-phase supply, eliminating the need for three-phase AC current.

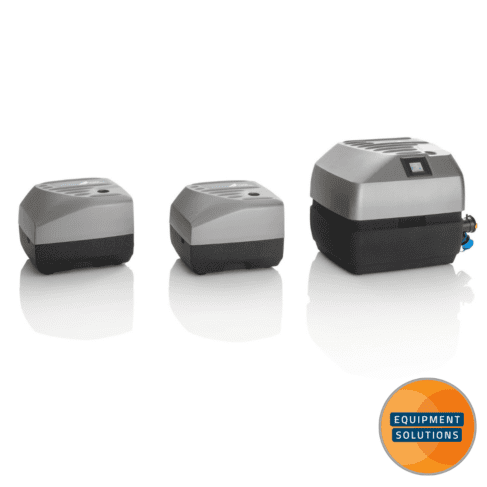

Scalable

The Tyscor suction systems are designed to grow with your practice. They can be scaled from supporting two operators to up to 12 operators without needing to replace the machine. This scalability ensures that DÜRR DENTAL products can be used for the longest possible time, promoting both sustainability and the long-term viability of your practice.

Anti-Bacterial Modules

The Tyscor range features highly efficient suction technology equipped with anti-bacterial modules in the radial fan, which inhibit bacterial growth and maintain a hygienic component surface.

Hybrid Ball Bearing with Ceramic Balls for Maximum Performance
Even the smallest components in our systems are crafted with exceptional quality and precision. The hybrid ball bearing combines durable steel with high-quality ceramic balls, ensuring smooth and reliable operation even at high speeds. This design enhances the efficiency of our extraction system while minimizing maintenance requirements.

VistaSoft Monitor
DÜRR DENTAL's new real-time equipment monitoring system, VistaSoft Monitor, brings cloud technology to your dental practice. It allows you to oversee your practice's operations from anywhere, whether on a PC or mobile phone, providing you with instant access to vital information at any time.

All DÜRR compressors come with a 3 year warranty (subject to terms and conditions of servicing schedule).

Whether you've been in dentistry for a while or you're new to the industry, you most likely will have seen a piece of DÜRR DENTAL equipment somewhere. DÜRR DENTAL SE are a German company set up in 1941 by the brothers Karl and Wilhelm Dürr. The company has gradually built itself up to now have around 1100 employees and a strong sector in 36 countries worldwide. All their products are fantastic and keep practices running smoothly and discreetly.

They have multiple options of equipment in areas of equipment, Diagnostic Systems, dental care and Hygiene.

Durr Dental Logo
Specifications of the Durr Tyscor VSA4 Suction Pump:
Voltage (V)

230, 1~

Frequency (Hz):

50

Dimensions (H x W x D cm):

96 x 69 x 56

Noise level dB(A):

61

Max. vacuum (mbar):

145

Weight (kg):

55

Max. flow rate with unimpeded flow (l/min)

2300

Site survey: Recommended
