Belmont 300 LED Light

Cost Efficient with High Performance Illumination

Category: Dental Operating Lights

  • Belmont 300 LED Light with a number of mounting options
  • Belmont 300 LED Light with a 3 Axis Pivot

The Belmont 300 LED Light offers an affordable solution for your dental surgery, with the following benefits:

White Natural Light

The design of the LED's produces a 85mm x 155mm rectangular light pattern and that is 'feathered' which help dental clinicians to treat patients with less fatigue. With clear illumination even with hlaf of the light head obstructed.

The 5,000 Kelvin beam which is ideal for tooth shade matching, clearly illuminates the oral cavity with 5 LED bulbs.  These are encased behind one single piece cover previenting mist and dust entering the head and reducing maintenance.

No Heat and No Regular Bulb Replacement

Unlike many traditional halogen operating lights historically, this unit ensures you work comfortably. With LED bulb life expectancy in excess of 20,000 hours it ensure you light will keep on working for your team.

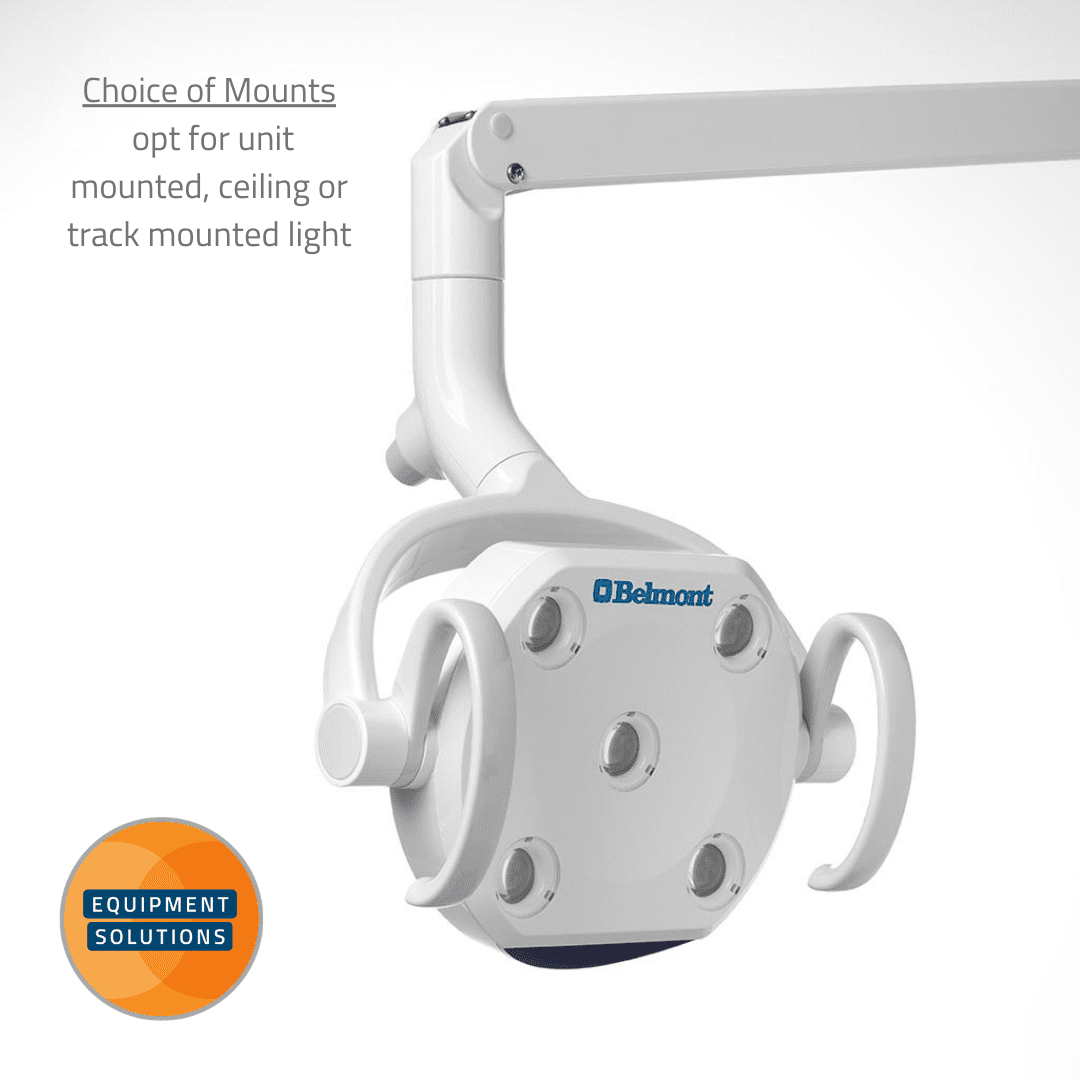

Mounting Options

Whether you opt for an integrated post mounted unit, chair mount, ceiling mounted light or track mounted unit, Belmont has a range of solutions suitable for your needs.

Takara Belmont are a Japanese manufacturer of dental equipment, with a respected and historic UK base. Their products are known for their outstanding levels of reliability. All of the range offer a robust solution for your surgery. With parts readily available and engineers across the UK experienced in their units for support and servicing. Belmont equipment is a solid choice and investment.

Compact, Light and Ergonomic

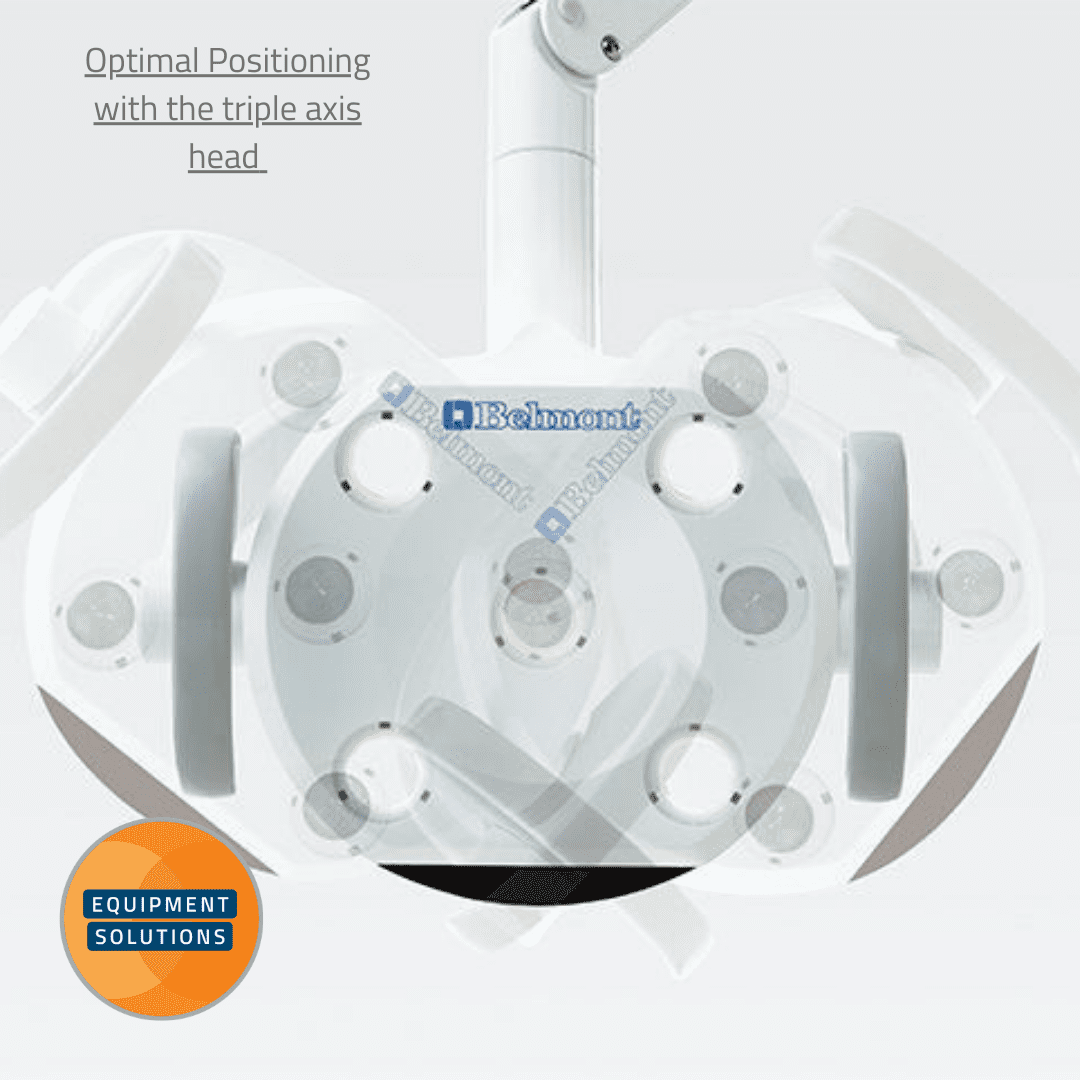

The small 180mm head of the Belmont 300 LED light has a triple-axis head movement and a zero drift arm to ensure ideal positioning.

Unique Stepless Control and Light Indication

Adjust the intensity by rotating the knob between 3,100 Lux and 28,000 Lux whilst maintaining the 5,000 Kelvin colour temperature.

Control with Ease

Touchless ON/OFF Sensor Switch which eliminates infectious contact during operation and ensure the clinician can focus on his patient.

Patient Mirror Options

Unique to Belmont's LED is the addition of a handy patient mirror.


With a low power consumption, there are long term operational cost savings.

Belmont Voyager Dental Chair comes as standard with this LED light
The Belmont 300 LED Light Specification:
Number of Lights within the Head



100-240V 50/60Hz

Colour Temperature

5000° Kelvin at any intensity

Light Intensity

3,100 to 28,000 lx (Stepless volume)
4,300 lx at composite safe mode

Colour Rendering Index

More than 85

Power Requirement

Type 901/902/905 AC230V 50Hz 0.26A
Type 920 DC20V 1.2A

Pole Length for Ceiling Mounted Options

Standard 100cm

Optional 150cm

Focal Distance

650 mm

Light Pattern

80 mm x 150 mm

Composite Safe Mode

Touchless sensor

Manual Override

Toggle switch for manual /sensor

Head Positioning

Rotation of head at three axes

Site survey: Recommended

Belmont 300 Dental Operating Lights - Brochure

Explore the range from this world leadind dental manufacturer.

Belmont 300 Series LED Light Brochure Cover
