Description

W&H Implantmed Surgical Implant Motor

Implantology and Maxillofacial Surgery with Maximum Precision

  • The W&H Implant offers outstanding precision.
  • W&H Implantmed Sugical Motor is offered with or without the Ostell for Implant stability.
  • W&H Implantmed Surgical and Implant Motor

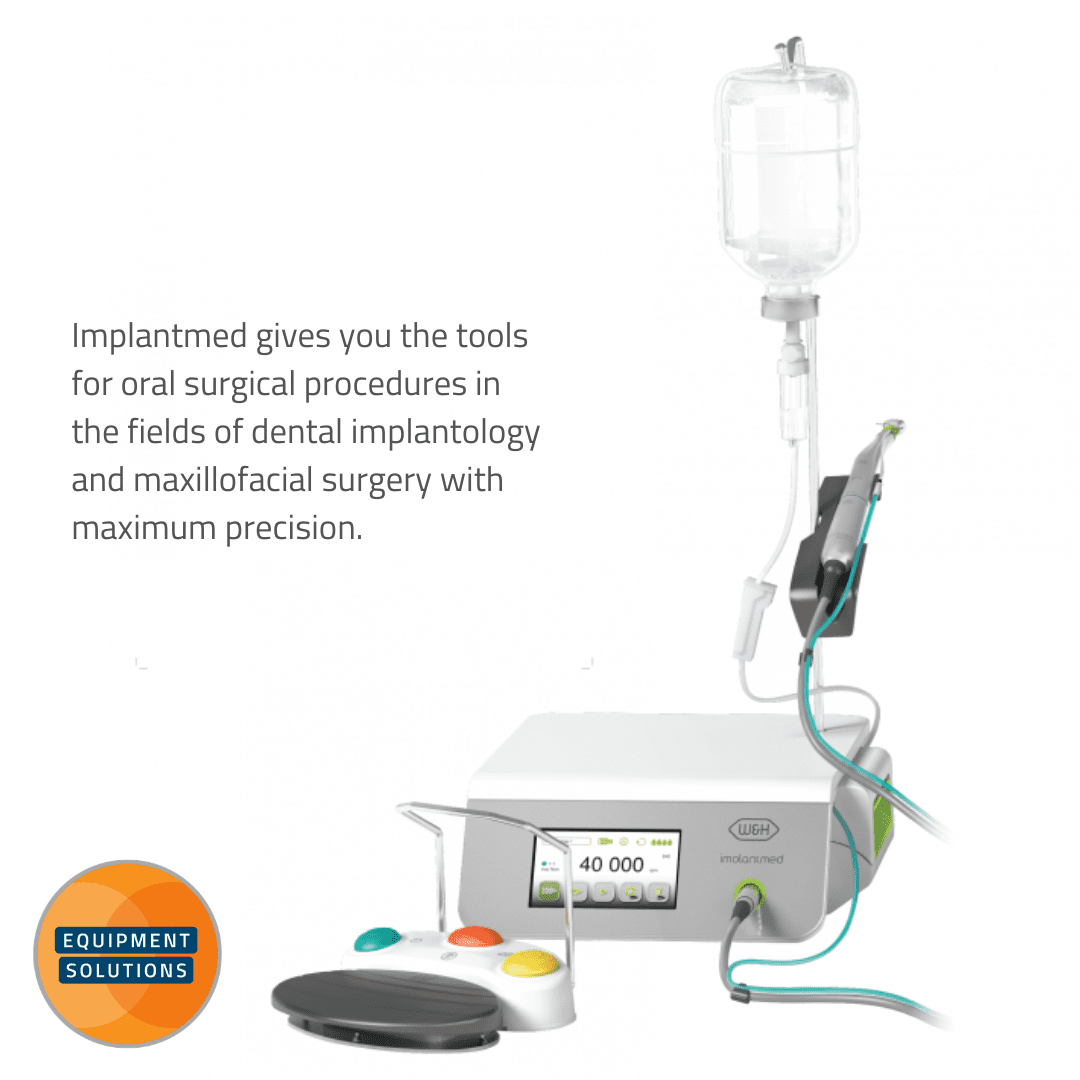

The W&H Implantment Surgical Motor has been specially designed for use in dental implantology. Implantmed gives you the tools for oral surgical procedures in the fields of implantology and maxillofacial surgery with maximum precision.

W&H offer two different versions - the Implant ‘Classic’ and the Implantmed ‘Plus’:

W&H Implantmed ‘Classic’ – this easy to use a powerful motor with 5.5Ncm torque and a wide speed range of between 300-400 rpm,  also has the benefit of an automatic auto ‘thread cutter’ function. Implant programs can be set up easily on the touchpad or from the foot pedal.

Other benefits also include:

  • Intuitive user interface and colour-touch screen, and glass surface
  • Secure torque control – this can be precisely adjusted from 5 to 80 Ncm
  • Ultra-short, powerful electric motor
  • New pump design
  • Wireless foot control
  • The motor cable is fully autoclavable
  • Ideal for group practice

W&H Implantmed ‘Plus’ – this unit combines the Osstell IQS module – to measure the stability of your implant and now the ‘plus’ has a documentation function to record treatment and their result. This addition to the unit meant that in 2017 it was awarded a ‘Red Dot’ for design.

The W&H Group, is a family-run company based in Bürmoos, Austria and is one of the leading manufacturers of dental transmission instruments & devices in the world.

Established in 1890 by the precision engineers Weber and Hampel, the company was acquired by the Malata Family in 1958. Innovative product and service solutions, a strong focus on research and development, vision and social responsibility have made W&H a successful local and global player.

  • Intuitive user interface
  • Secure torque control and measurable implant stability
  • Ultra-short, powerful electric motor
  • New pump design
  • Wireless foot control
  • W&H Osstell ISQ module - Observe osseointegration – The healing process can be monitored
  • Colour touch screen - Simple and intuitive user interface
W&H Implantmed Implant Motor
Implantmed SI-1023, SI-1015, SI-1010
Mains voltage:

SI-1023: 230V

SI-1015: 120V

SI-1010: 100V

Permissible voltage fluctuation:

SI-1023: 220 – 240 V

SI-1015: 110 – 130 V

SI-1010: 90 – 110 V



Rated current:

SI-1023: 0.3 – 0.8 A

SI-1015: 0.3 – 1.6 A

SI-1010: 0.3 – 1.4 A

Frequency

50 / 60 Hz



Mains fuse (2 pcs):

250 V – T1,6AH

Maximum power consumption:

170 V

Max. mechanical output power:

80W

Max. torque at the motor:

6.2 Ncm

Motor speed range in the nominal voltage range:

200 – 40,000 min -1

Coolant flow rate at 100 %:

min. 90 ml/min

Height / width / depth:

100 x 262 x 291 mm

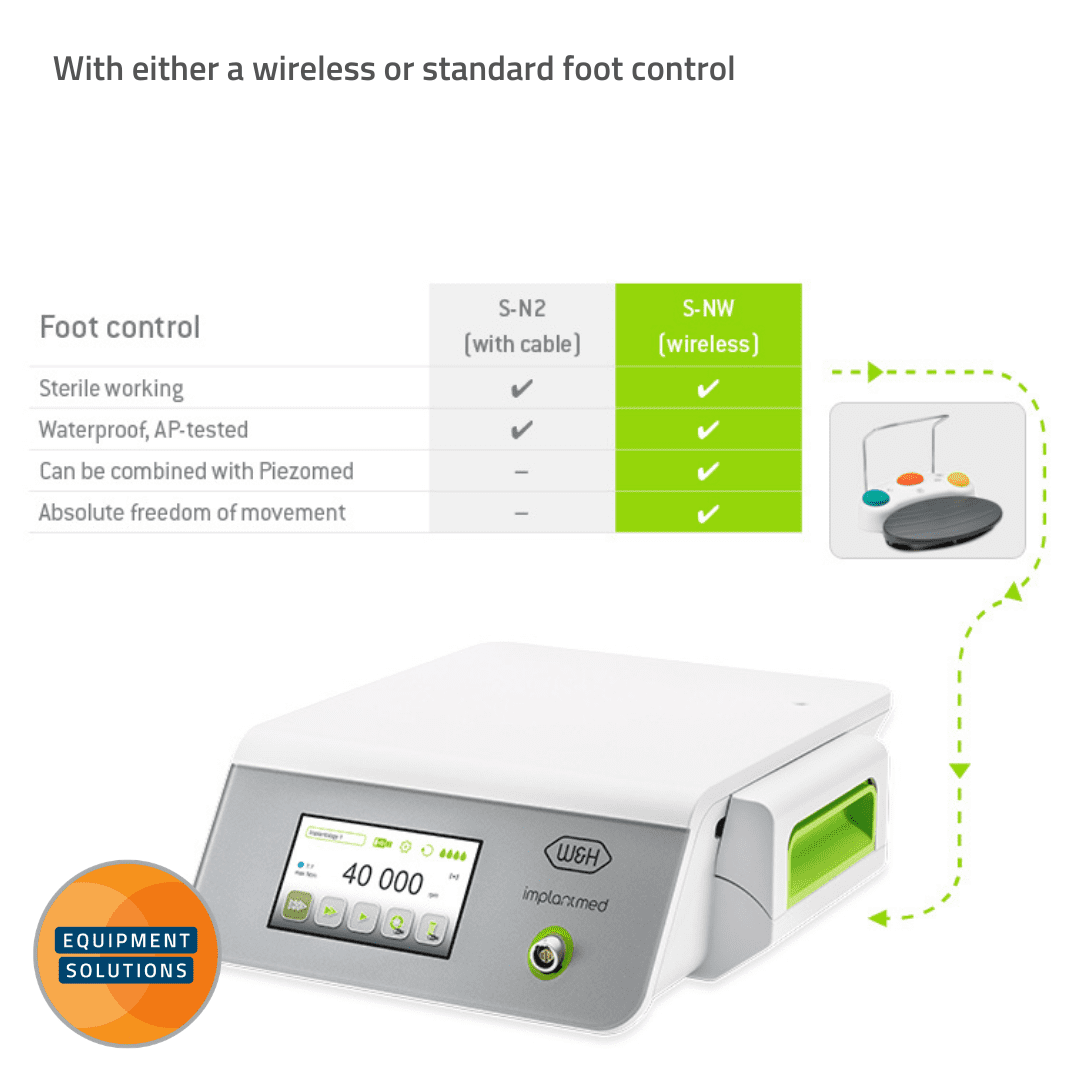

Foot control:

S-N2 / S-NW

Straight and contra-angle handpieces with mini LED+:

S-11 L / WS-56 L, WS-75 L, WS-91 L, WS-92 L

Warranty:

24 months

Mains voltage:

SI-915: 110 – 130 V

SI-923: 220 – 240 V

Max. torque at the rotary instrument (in program 4):

70 Ncm

Frequency:

50 / 60 Hz

Max. mechanical output power:

80 W

Implantmed SI-915, SI-923
Max. torque at the motor:

5.5 Ncm

Motor speed range in the nominal voltage range:

300 – 40,000 min -1

Straight and contra-angle handpieces:

WI-75 E/KM / S-9 L G / S-11 L G / WS-56 L G / WS-75 L G / WS-91 L G / WS-92 L G

Length of motor cable:

1.8 m

Coolant flow rate at 100 %:

min. 90 ml/min

Foot control:

S-N2

Height / width / depth:

100 x 235 x 240 mm

Demontration: Recommended
