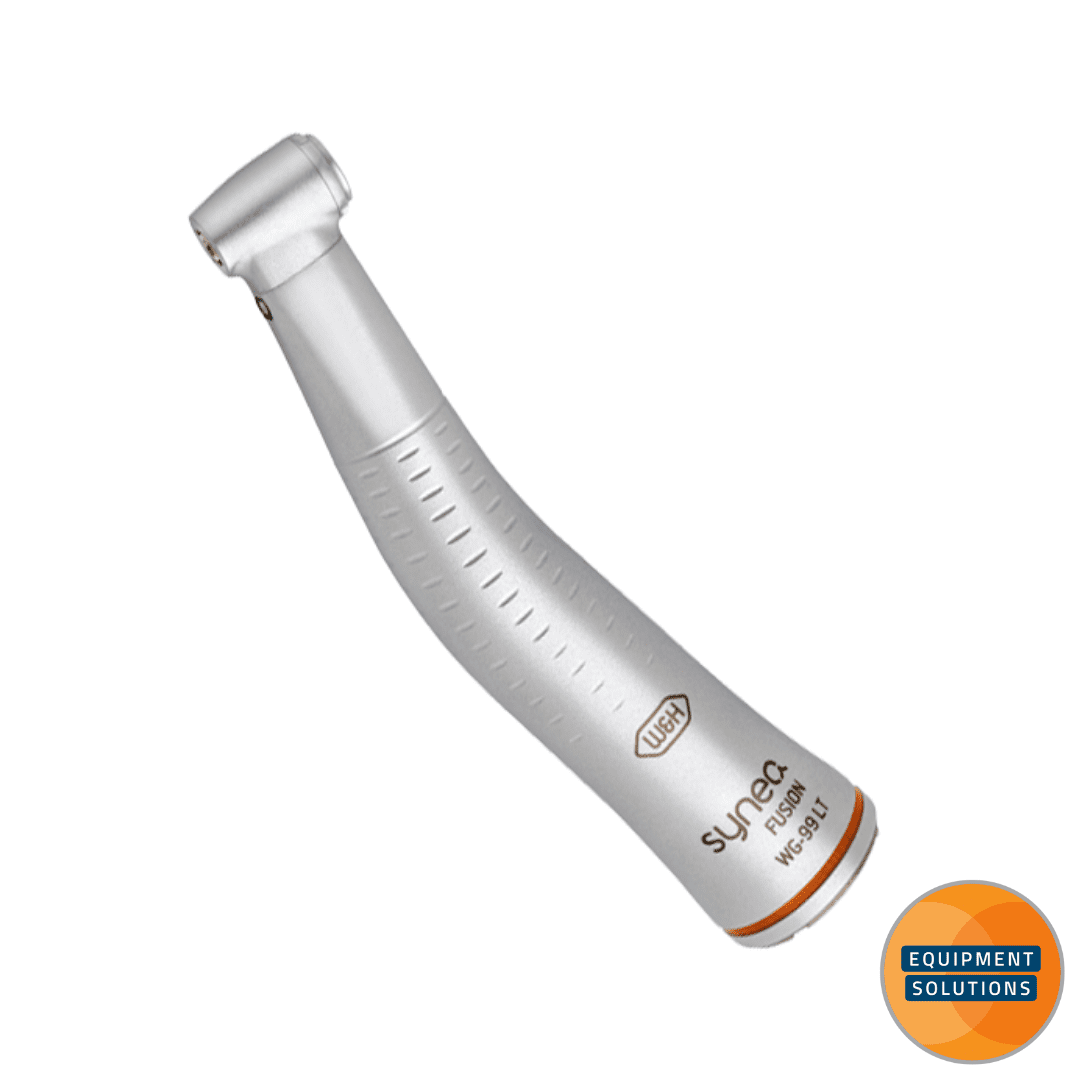

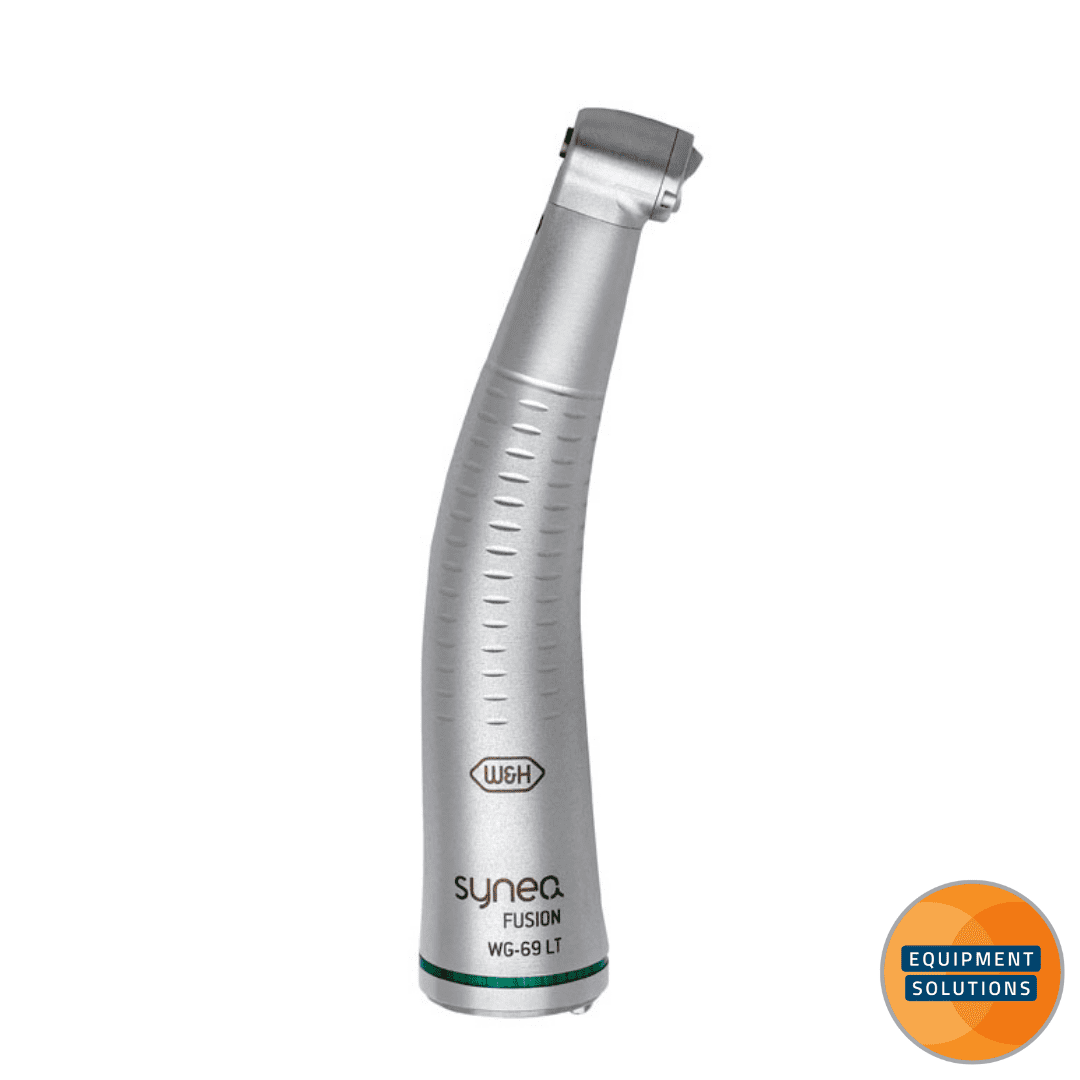

W & H Handpieces - Synea Fusion Straight and Contra-angle Handpieces
W & H's Mid-Range Handpieces
Synea Fusion Straight and Contra-angle Handpieces provide proven quality at an exceptional, affordable price.
24 Months Warranty
This takes the hassle out of any issues with the product within the first 2 years of purchase, thereby allowing users to get the most out of their Synea Fusion Straight and Contra-angle Handpieces.

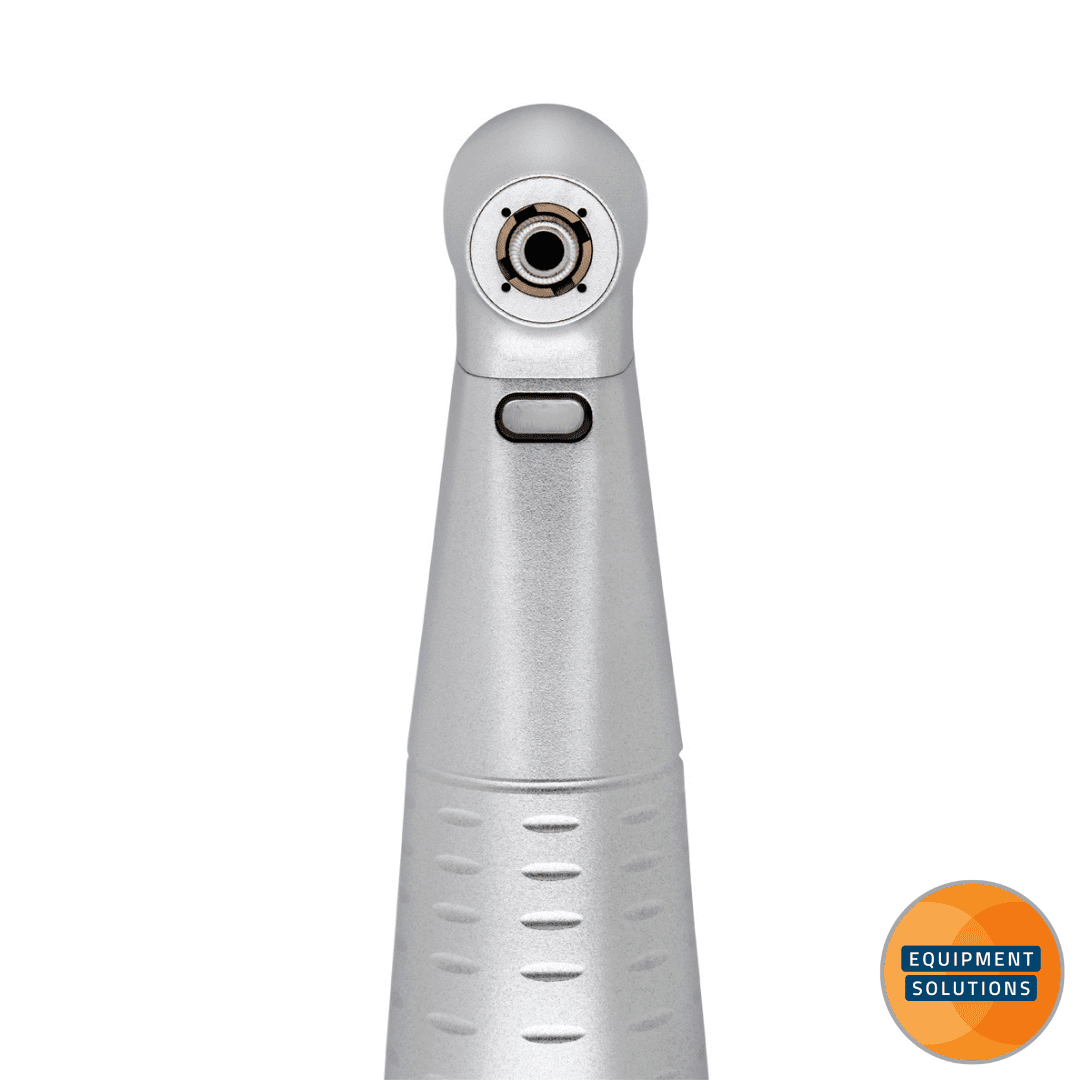

Compact Glass Rod
This feature allows for constant light quality through exceptional illumination and emphasis on the treatment area.
Connectivity
Synea Fusion Straight and Contra-angle Handpieces can be connected to all ISO motors.
W&H are industry leaders from Austria and are very well respected amongst the dental community. W&H can assure their customers quality, craftsmanship and reliability in every product.


Synea Fusion Straight and Contra-angle Handpieces have a range of key features:
Easy bur Change
Applications on the Synea Fusion Straight and Contra-angle Handpieces can be changed easily and quickly, allowing operatives to save time when busy.
Thermo Washer Disinfectable and Sterilisable
Synea Fusion Straight and Contra-angle Handpieces are easily maintainable as they are compatible with thermo washers, helping improve the longevity of the product's life cycle.

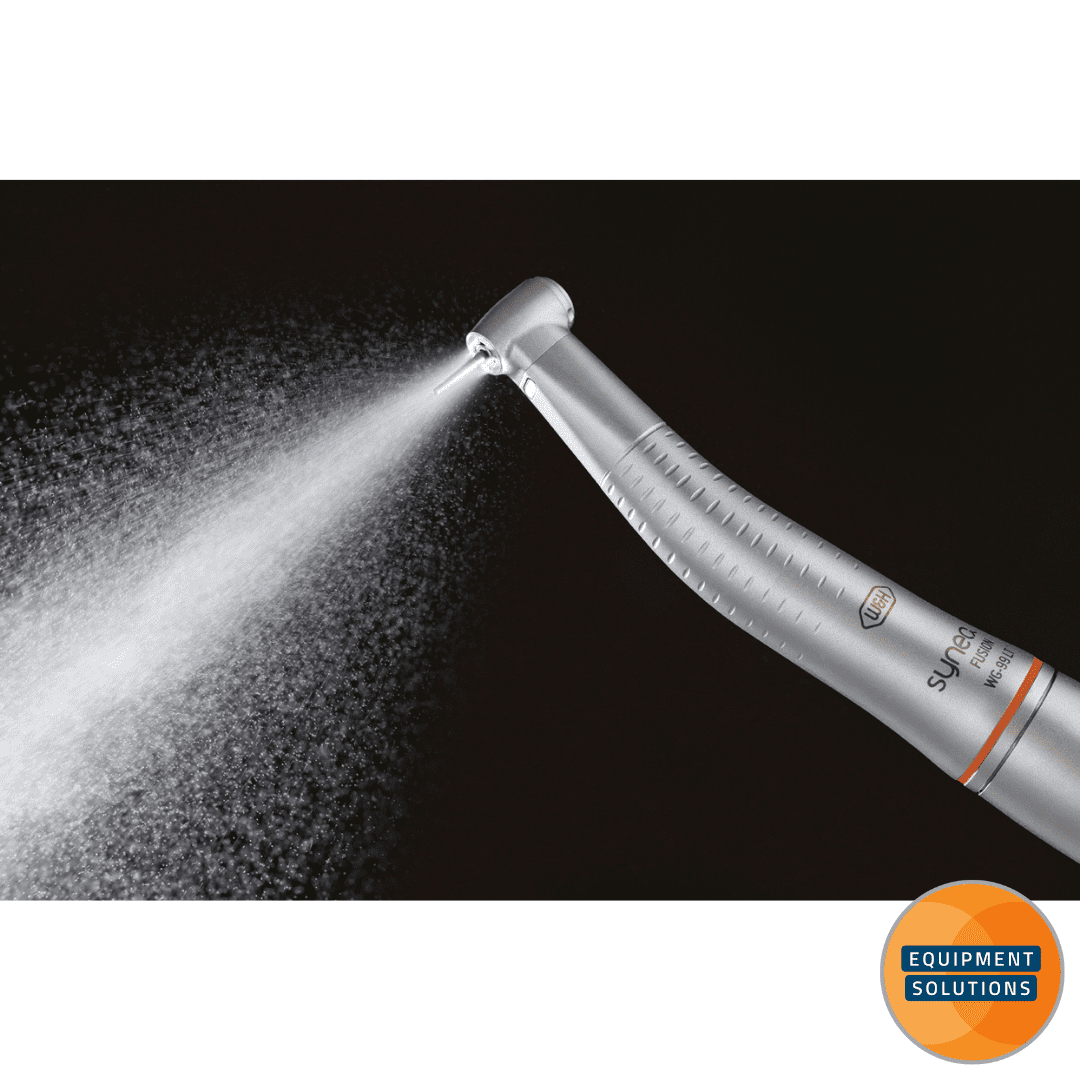

Top Water Quality
These have been designed with integrated maintenance-free spray filters, helping to ensure top water quality.
Monobloc Design
This feature has been integrated for optimum hygiene and enhanced ergonomics.


Comparison of Synea Fusion Straight and Contra-angle Handpieces Models:
Types with light: (compact glass rod) | WG-99 LT | WG-66 LT | WG-56 LT | WG-67 LT | WG-69 LT | |
---|---|---|---|---|---|---|
Types without light: | WG-99 A | WG-66 A | WG-56 A | HG-43 A | WG-67 A | WG-69 A |
Head size: | 9.5 mm | 9.5 mm | 9.5 mm | – | – | – |
Head height with bur (19 mm): | 21.6 mm | 20 mm | 20mm | – | – | – |
Rotary instruments: Max. operating part diameter: Max. length: | FG bur 2.5 mm 25 mm | Contra-angle handpiece bur – 34 mm | Contra-angle handpiece bur – 34 mm | Straight/contra-angle handpiece burs – 34 mm | Stroke 1.1 for Dentatus tips | Stroke 0.9 for Intensiv files |
Speed increase/reduction: | 1:5 | 2:1 | 1:1 | 1:1 | 2:1 | 2:1 |
Spray: | 4x (>50ml/min) | 1x (>50ml/min) | 1x (>50ml/min) | 1x (>50ml/min) | 1x (>50ml/min) | 1x (>50ml/min) |
Illuminating power in types with light: | 25,000 Lux | 25,000 Lux | 25,000 Lux | – | 25,000 Lux | 25,000 Lux |
Indications: | – Crown and cavity preparations – Trephining – Resections – Finishing – Removing fillings and metal | – Excavating – Preparations close to the pulp – Finishing | – Crown and cavity preparations – Trephining – Resections – Separating – Finishing of cavity margins and fillings | – Preparing – Separating – Trephining – Resections in anterior area – Minor technical procedures | – Removal of excess materials – Pre-polishing – Fine polishing – Buffing in the interdental and subgingival areas – Max. rotational speed 20,000 rpm | – Finishing of interproximal and subgingival areas and cavity margins – Chamfering of the preparation edges and of cavities – Removal of sub gingival plaque – Stripping in orthodontics – Max. rotational speed 40,000 rpm |
