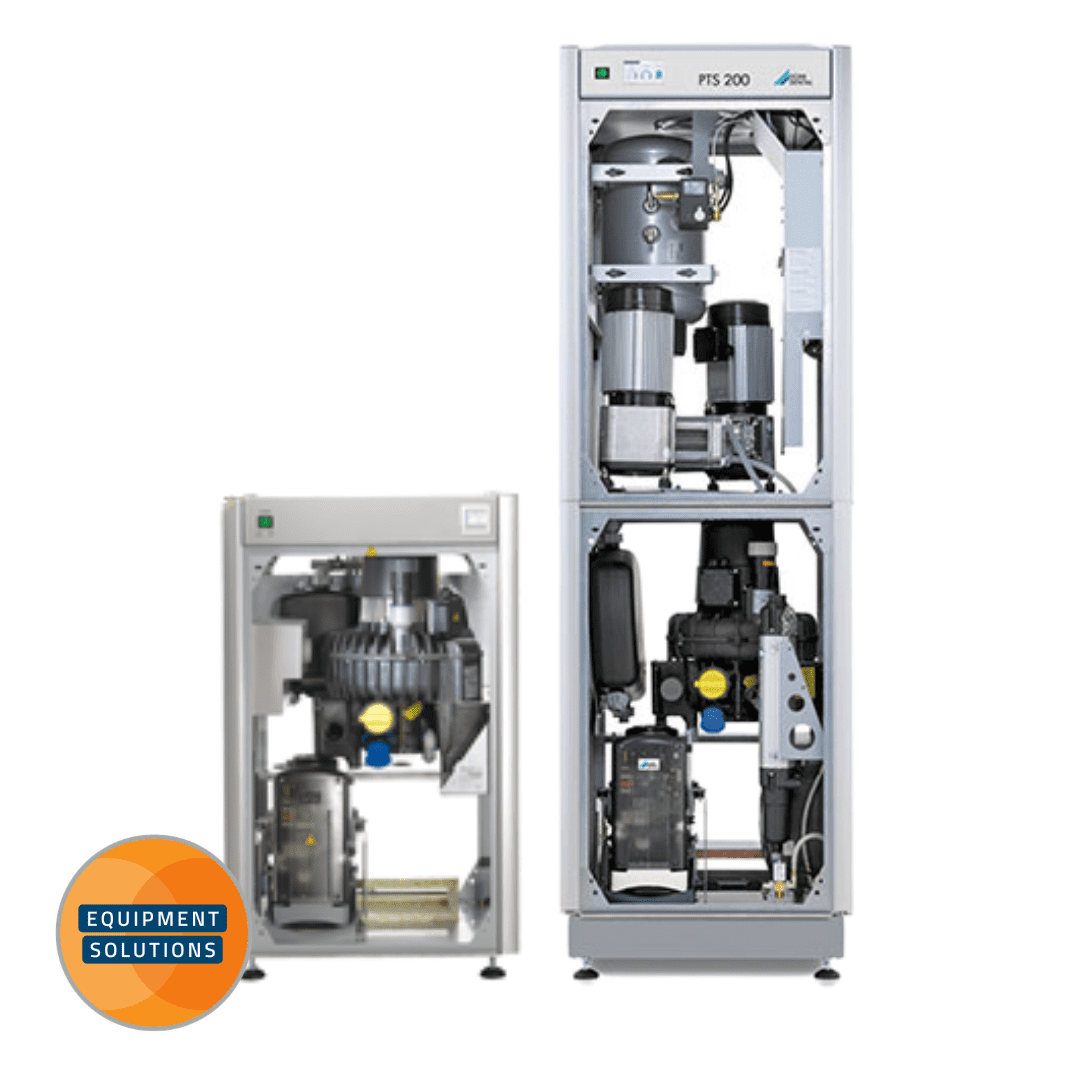

Dürr Power Tower

Suction & Compressor in a compact unit

Category: Power Towers - Combined Suction & Compressors

  • The Durr Power tower combines a suction motor and a air compressor into a single unit.

The Dürr Power Tower dental compressor/suction is the ultimate product for a practice limited to just surgery/decontamination rooms. It's ideal as it houses a compressor and a suction pump in a tall unit cabinet, that could be put aside in the corner of a surgery or decontamination room.

Whether you've been in dentistry for a while or your new to the industry, you most likely will have seen a piece of DÜRR DENTAL equipment somewhere. DÜRR DENTAL SE are a German company set up in 1941 by the brothers Karl and Wilhelm Dürr. The company has gradually built itself up to now have around 1100 employees and a strong sector in 36 countries worldwide. All their products are fantastic and keep practices running smoothly and discreetly.

They have multiple options of equipment in areas of equipment, Diagnostic Systems, dental care and Hygiene.

Quality of Product

Fantastic quality air from the compressors without having to apply oil (oil-less). High concentration suction to pump in power tower pump.

100% Duty Rating (Duty Cycle)

DÜRR compressors and suctions are great for keeping surgeries running smoothly as they should run without any delays unless switched off.

Reliability

DÜRR products are very reliable so having two DÜRR products together means you'll have less to worry about with your suction and compressed air.

Efficiency

Compressed air fed into multiple surgeries simultaneously without interruption.

Strong Support

DÜRR offer good support to their clients/customers.

Sound Reduced

DÜRR compressors and suction pumps are known for being very discreet/quiet whilst feeding quality air to surgeries.

Compressor Warranty

All DÜRR compressors/suction pumps come with a 2 year warranty (subject to terms and conditions of servicing schedule).

Sound Lowered

The cabinet housing unit reduces the noise output of the compressed air and suction to only 54 dB(A).

Compact Unit

Complete surgery supply at only 120cm (height). Compact installation area (0.3m²)

Quality of Product

All the individual components within the product are great quality and supply high grade air and suction.

Reliability

Steadfast compressors and suction pumps when operating surgeries unless switched off.

Structure/Strength

Robust dental compressors.

Ergonomic design

User friendly, aesthetically pleasing and designed to compact all the components into as small a unit as possible.

Durr Dental Logo
The specification of the VS 900 S:
Voltage (V 1~/V 3~)

230/400

Frequency (Hz)

50

Current consumption (A)

7.4/3.6

Power (kW)

1.68/1.8

Vacuum (mbar) AAV
170
Speed (rpm)

2,850

Max. fluid flow rate (l/min)

16

Cyclic duration factor (S1)

100 %

Noise level without housing dB(A)

approx. 65

Noise level with housing dB(A)

approx. 58

Dimensions without housing (H x W x D cm)

55 x 41 x 42

Dimensions with housing (H x W x D cm)

55 x 49 x 53

Weight without housing (kg)

33

Weight with housing (kg)

49

The specification of the Duo unit compressor:
Cylinders

2

Voltage (V 1~, Hz)

230/400 , 50/60

Suction power (per unit) (l/min)

140/150

Delivery (per unit) at 5 bar 1) (l/min 2))

130/145

Tank capacity (l)

20

Pressure range 3) (bar)

6 - 7.8

Noise level 4) dB(A)

approx. 66/69, in cabinet approx. 55/61

Dimensions (H x W x D cm)

69 x 49 x 46

Weight (kg)

47

Site survey: Recommended
