Description

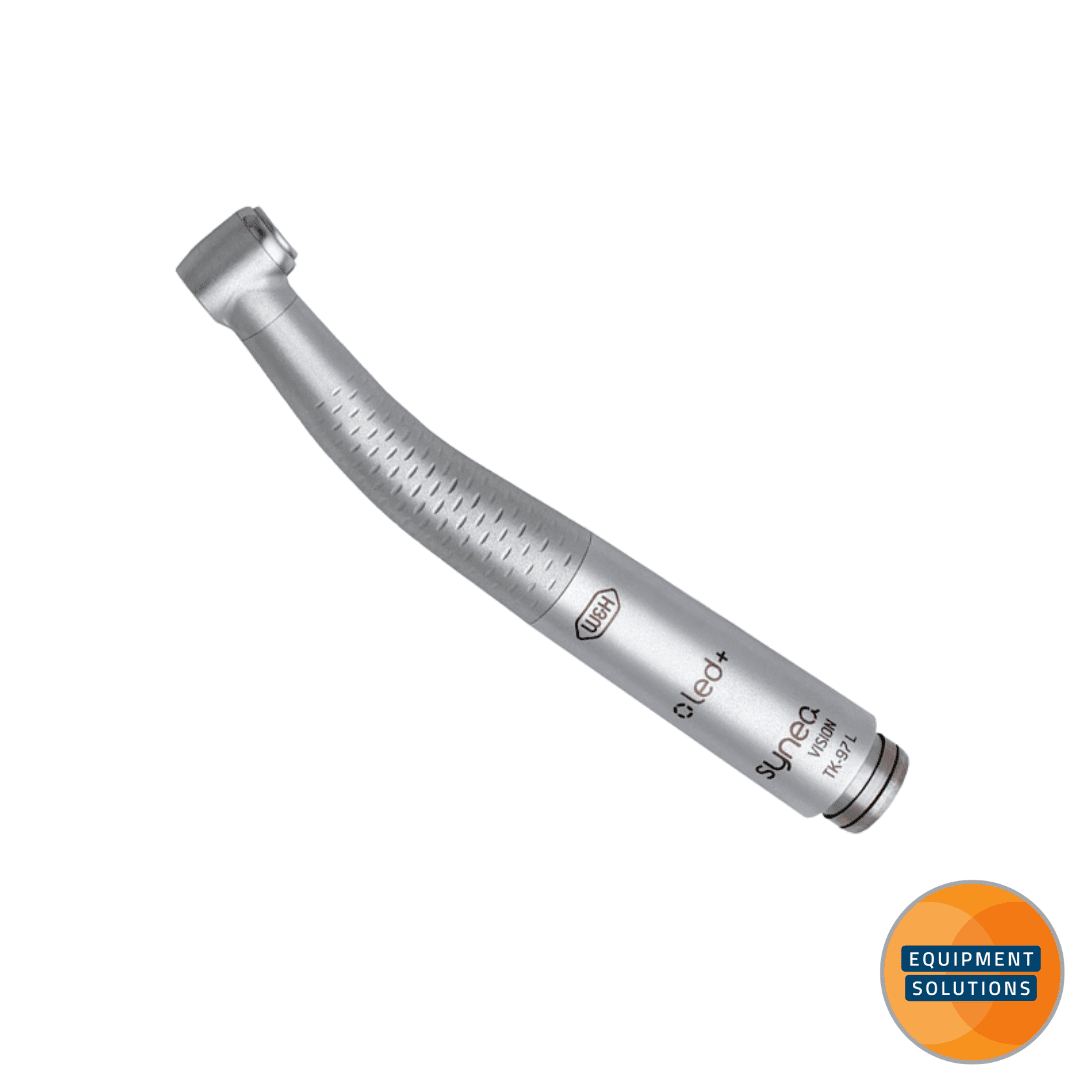

W & H Handpieces - Synea Vision Turbines
W & H's Premium Handpiece Range
The Synea Vision Turbines are characterised by high performance, unrivalled ergonomics and outstanding value for money. The vision range is the premium line in the Synea series. This range offers an optimum service life and improved features of innovation.
36 Months Warranty
This takes the hassle out of any issues with the handpieces within the first 3 years of purchase, thereby allowing users to get the most out of their handpieces.
Ring LED
The ring LED light allows allows 100% shadowless illumination of the treatment area, making it easier to concentrate on the treatment area and diagnose any issues. This is available with the Roto Quick system only.
Four Head Sizes
The Synea Vision Turbines come with four different head sizes for every application case, making this range a versatile option.
W&H are industry leaders from Austria and are very well respected amongst the dental community. W&H can assure their customers quality, craftsmanship and reliability in every product.
Synea Vision Turbines have a range of key features:
Optimum Cooling
This feature allows optimum cooling of the treatment area with a 5x spray.
Hygienic Head System
Efficient in stopping the spread of bacteria.
Scratch-resistant Surface
This feature helps to improve the overall aesthetics of the Synea Vision Turbines, whilst also extending their lifecycle, thereby adding to their great value.
Minimal Sound Disturbance
The Synea Vision Turbines have been designed to be unexpectedly quiet during operation, which can help settle the patient.
Thermo Washer Disinfectable and Sterilisable
Synea Vision Turbines are easily maintainable as they are compatible with thermo washers, helping improve the longevity of the product's life cycle.
Comparison of Synea Vision Turbines Models:
| Types with integrated ceramic ball bearings: | TK-94 L / TK-94 LM | TK-97 L / TK-97 LM | TK-98 L / TK-98 LM | TK -100 L / TK-100 LM |
|---|---|---|---|---|
| Light | LED+ / compact glass rod | Ring LED+ / compact glass rod | Ring LED+ / compact glass rod | Ring LED+ / compact glass rod |
| CRI (LED version): | >90 | >90 | >90 | >90 |
| Colour temperature (LED version): | 5,500 K | 5,500 K | 5,500 K | 5,500 K |
| Luminous flux (lumens): | 6.0 / 4.0** | 6.0 / 4.0** | 6.0 / 4.0** | 6.0 / 4.0** |
| Illuminating power: | 25,000 lux | 25,000 lux | 25,000 lux | 25,000 lux |
| Coupling | 1. Roto Quick 2. Multiflex | 1. Roto Quick 2. Multiflex | 1. Roto Quick 2. Multiflex | 1. Roto Quick 2. Multiflex |
| Head size: | 9 mm | 10 mm | 11.5 m | 13 mm |
| Head height: | 17.2 mm (with bur 16 mm) | 21.1 mm (with bur 19 mm) | 21.4 mm (with bur 19 mm) | 21.4 mm (with bur 19 mm) |
| Power*: | 14 W | 21 W | 24 W | 26 W |
| rpm (min-1): | 410,000 | 400,000 | 360,000 | 330,000 |
| Rotary instruments: Max. operating part diameter: Max. length: | 1.5 mm 16 mm | 2 mm 21 mm | 2 mm 25 mm | 2.5 mm 25 mm |
| Weight: | 39g /67g | 38g/68g | 40g/69g | 40g/70g |
| Roto quick connection operating pressure: Multiflex connection operating pressure: | 3 – 0.3 bar 2.5 to 4 bar | 3 – 0.3 bar 2.5 to 4 bar | 3 – 0.3 bar 2.5 to 4 bar | 3 – 0.3 bar 2.5 to 4 bar |
| Spray outlets: | 5x | 5x | 5x | 5x |
| Volume: | 59 dB (A) | 57 dB (A) | 57 dB (A) | 57 dB (A) |

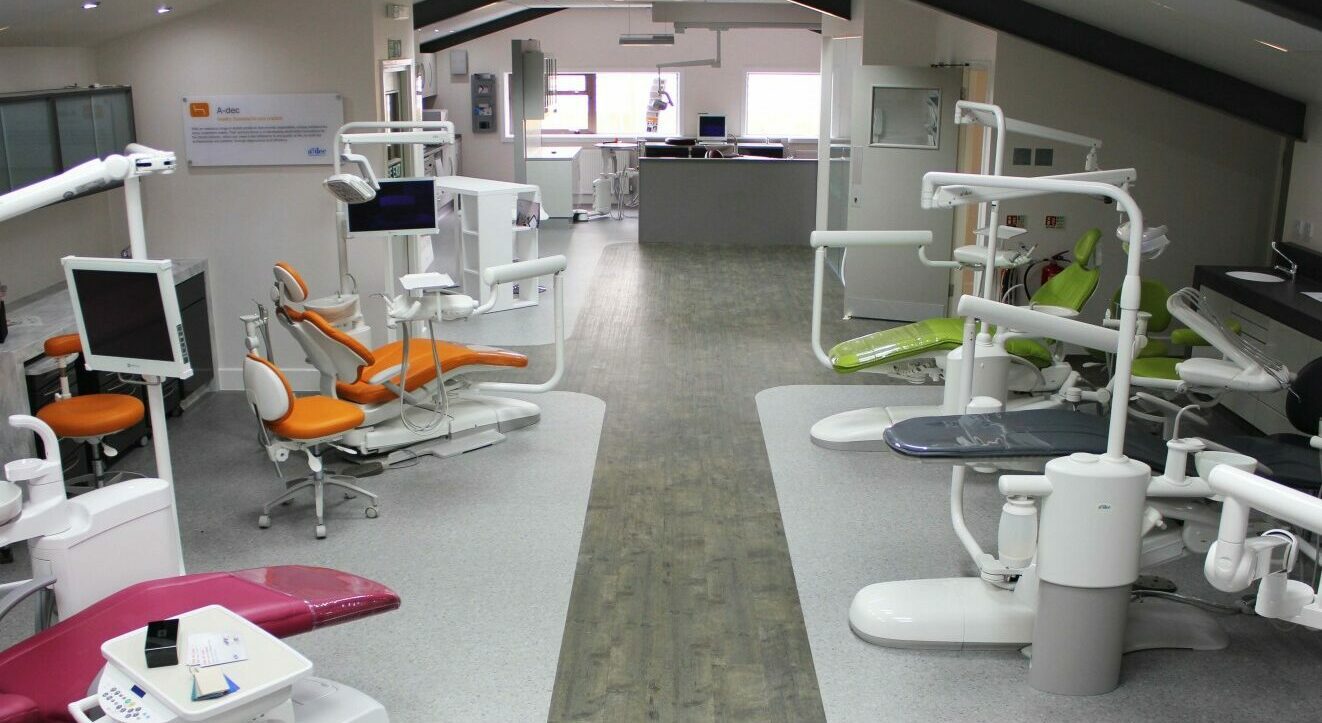

Practice Design Centre
