Vatech PaX-i3D Smart CBCT

Compressed Sensing Technology for Outstanding Clarity

  • Vatech PaX-i3D Smart CBCT is an incredibly powerful imaging system
  • Vatech PaX-i3D Smart CBCT pictured with Ceph

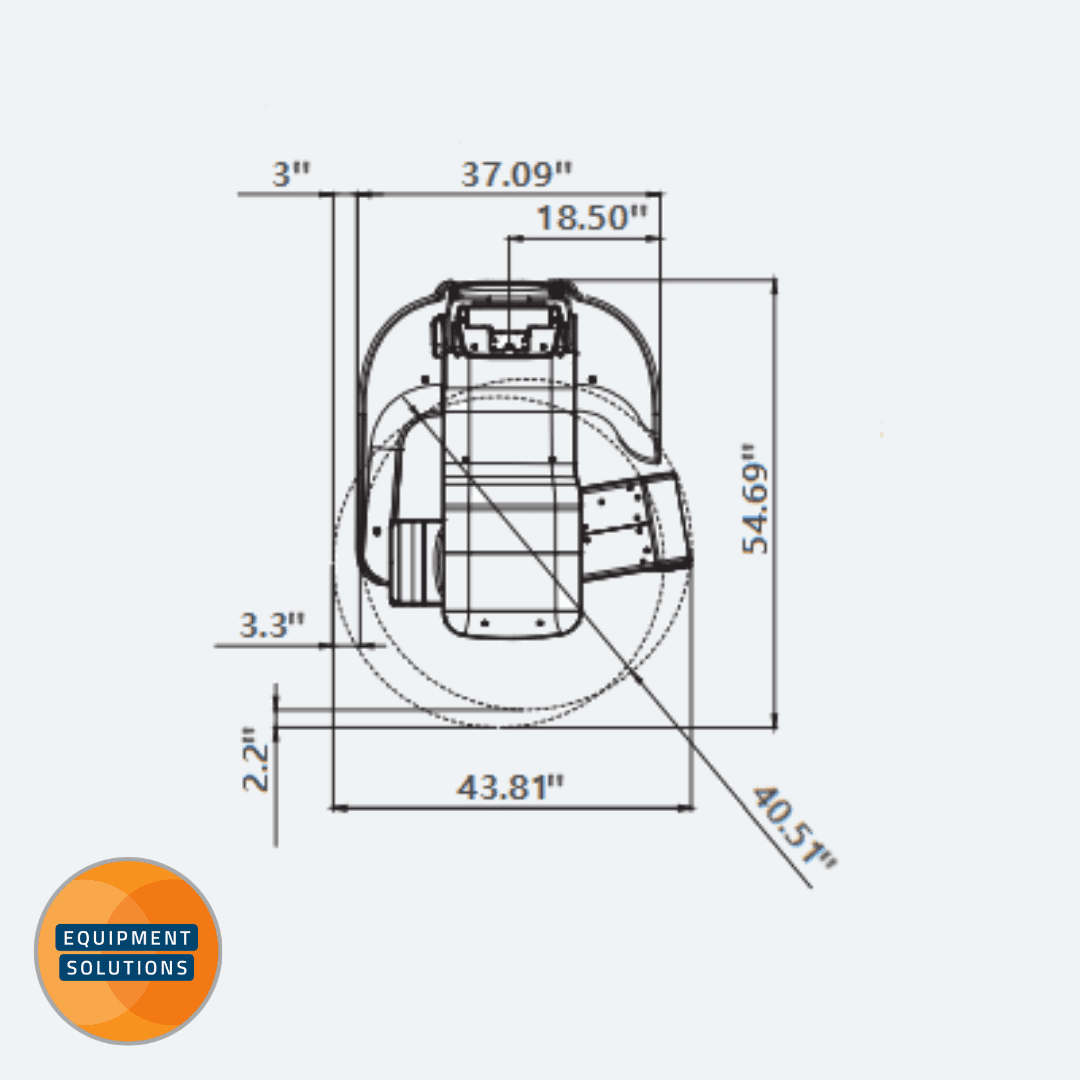

  • Vatech PaX-i3D Smart from the top view
  • Vatech PaX-i3D Smart sizes

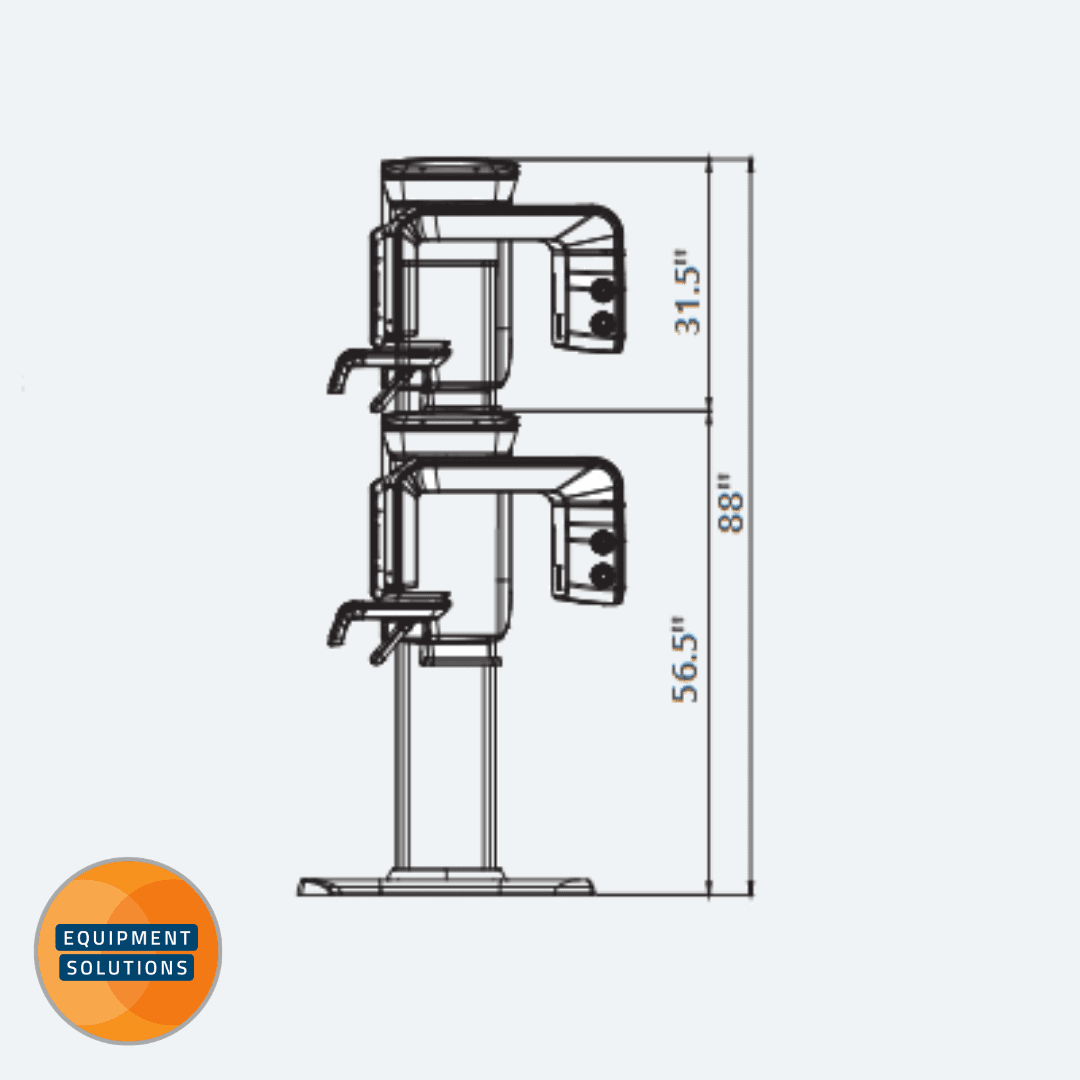

  • Vatech PaX-i3D Smart dimensions

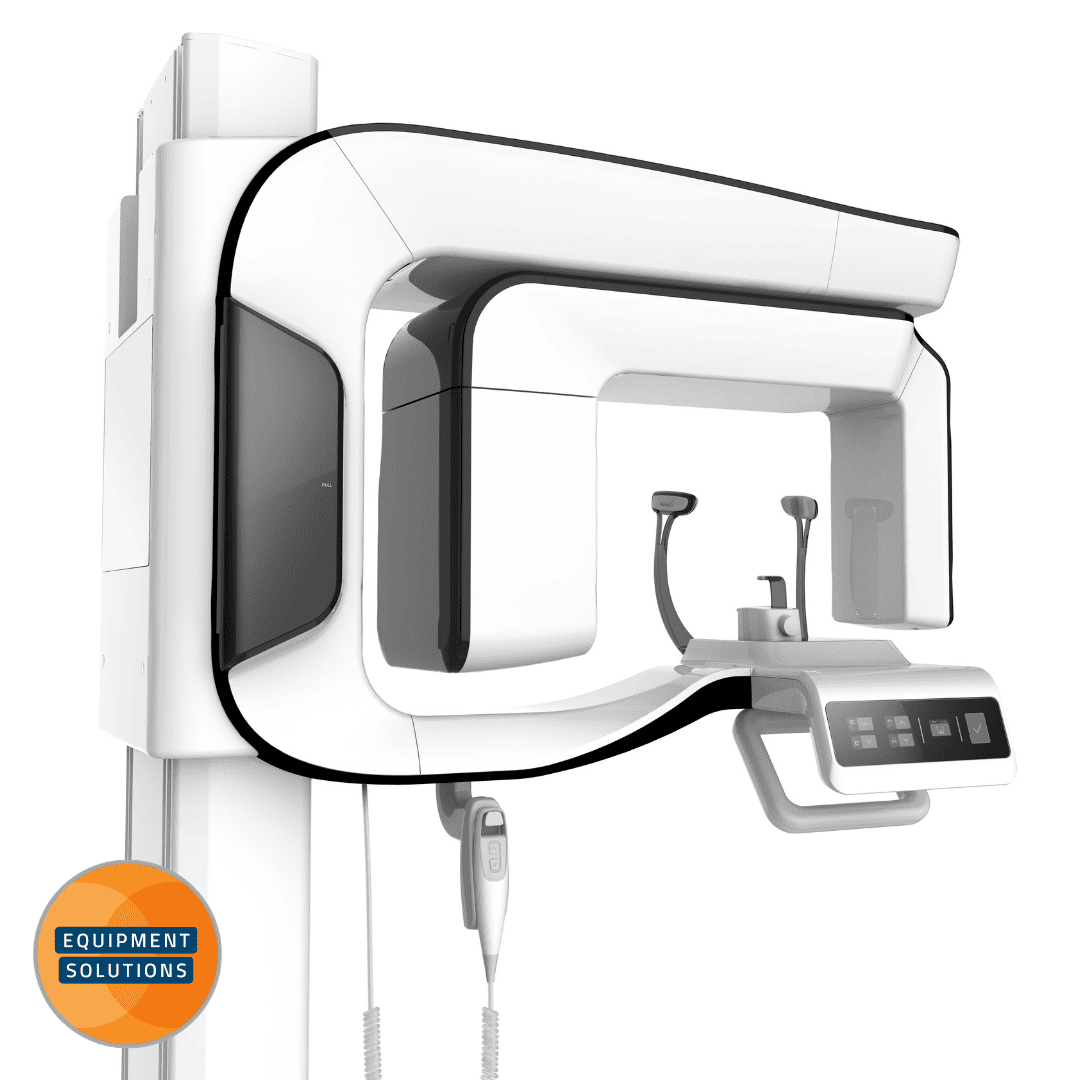

  • Vatech PaX-i3D Smart from the front

The Vatech PaX-i3D Smart not only is a 3-in1 systems with CBCT (with Auto Pano), Panoramic and Cephalometric (optional) but also delivers a higher more precise level of radiographs.

Innovative Compressed Sensing Technology

The PaX-i3D Smart offers innovative for a more accurate diagnosis, 3D image quality is dramatically improved based on the innovative image reconstruction technology.

2D + 3D in One Shot

One scan with a Vatech PaX-i3D gives you not just a CT image but also an AutoPan image. This means that patients who require both images do not need to undergo two x-rays. Both images are conveniently displayed within 1 field of view.

Vatech is a South Korean manufacturer that specialise in digital imagery products. They are known for their quality products that are recognised as some of the best in the industry.

The Vatech PaX-i3D Smart offers 3 types of Imaging come together in one:

1) CBCT Imagery

i) Anatomical FOV, 12 x 9

The innovative FOV of the PaX-i3D Smart provides an arch-shaped volume, which shows a wider view of dentition compared to other devices of the same FOV. Normally, a FOV 10x8.5 image shows tooth #8. However, when the tooth is lying on its side, there is a high possibility that the tooth will be cut out of the image. The "arch-shaped volume" eliminates this possibility and shows the hidden dentition area.

ii) ART-V (Artifact Reduction Technology of Vatech)

The innovative FOV of the PaX-i3D Smart provides an arch-shaped volume, which shows a wider view of dentition campared to other devices of the same FOV. Normally, a FOV 10x8.5 image shows tooth #8. However, when the tooth is lying on its side, there is a high possibility that the tooth will be cut out of the image. The "arch-shaped volume" eliminates this possibility and shows the hidden dentition area.

2) Panoramic Imagery

Smart Plus Provides the most precise and high quality panoramic image. Clear and sharp panoramic image brings you better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high quality images will become the new standard of panoramic imaging.

i) Magic Pan

Magic Pan creates a more superb panorama image. It is acquired through the elimination of distorted and blurred images caused by improper patient positioning(Optional). Focused image is reorganized throughout the whole dental arch and the image quality can be increased. The image becomes clearer especially in the incisor and canine region, TMJ areas and root canal.

3) Cephalometric Imaging

Scan type cephalometric offers two image sizes, LAT and FULL LAT, you can choose one of them based on the purposes of your diagnostic needs.

Provide specialized high quality images to suit Full lateral gives 30% larger images and the occipital orthodontics and maxillofacial surgeries' area of the patient for comprehensive diagnosis (optional).

Specifications of the Vatech PaX-i 3D Smart:
Function

CT(with Auto Pano) + Pano + Ceph

Focal Spot

0.5mm

CT - FOV Size(cm)

 10X8.5(Anatomical 12X9 cm) : 5X5 / 10X7 / 10X8.5

 8X8 : 8X8

Voxel Size

0.08mm / 0.2mm / 0.3mm

Scan Time

CT: 18 sec

Pano : HD 13.6 sec / 7sec (Optimal with Magic PAN)

Ceph : 12.9 sec

Recon Time

CT: Max. 90 sec. (10X8.5 / 0.2 Voxel Basis)

Pano: Less than 2 sec

Gray Scale

14 bit

Tube Voltage/Current

50-99 kVp / 4 - 16 mA

Site survey: Recommended
