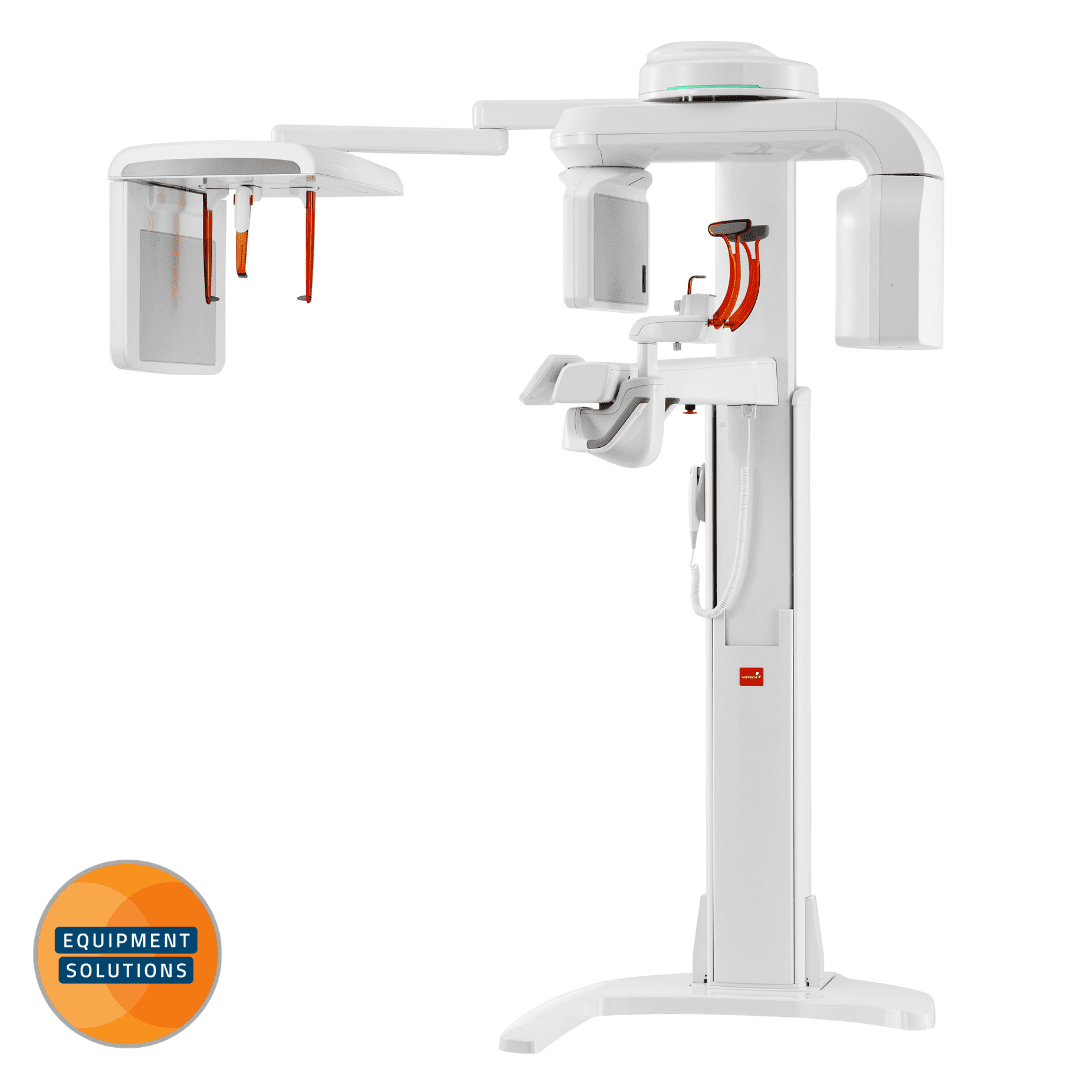

Vatech PaX-i3D Green CBCT

Ultra-Low Dose without Compromising Accuracy

  • Vatech PaX-i 3D Green is one of this leading imaging manufacturers top units
  • Vatech PaX-i 3D Green offers an ultra-low dose

The Vatech PaX-i3D Green CBCT offers innovative technology ensuring an ultra low does x-ray for your patients, protecting both patient and user.

Pride of any practice

Show your patients you care with the PaX-i3D Green advanced system that produces precise imagery and improves health of your customers and team.

The 3 levels of imaging for your dental practice :

  1. 1) 3D Imaging /CBCT

Wide range of diagnosis with multi fov selection. With expanded FOV sizes, the PaX-i3D Green offers valuable diagnoses for professionals.

i) FOV 10X8

10 x 8cm FOV is ideal for dual arch scans of the entire dentition; including third molars, implants and surgical guides.

ii) FOV 16X10
  1. 16x10 cm FOV provides the optimal information for diagnosis of the entire dental arch, including the TMJ. In addition, implant planning and facial surgery treatment planning is possible.
iii) FOV 15X15

15x15 images from PaX-i3D Green enable you to do a comprehensive diagnosis including oral and maxillofacial surgery. This perfect FOV size will be helpful for complex orthognathic, implant, and orthodontic surgery.

2) Panoramic Imaging

PaX-i3D Green Provides the most precise and high quality panoramic image. Clear and sharp panoramic image brings you better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high quality images will become the new standard of panoramic imaging.

i) Magic Pan (optional upgrade)

MAGIC PAN creates a more superb panorama image. It is acquired through the elimination of distorted and blurred images caused by improper patient positioning.

3) Cephalometric Imaging

If you require Ceph PaX-i3D Green provides optimal images with an exclusively designed sensor for cephalometric diagnosis. As it offers two image sizes, LAT and Full LAT, you can choose one of them based on
the purposes of your diagnostic needs.

i) Built-in Sensor System

PaX-i3D Green enables you to acquire high quality images in a safe and comfortable environment. Best of all, you don’t need to waste time or risk damage by changing sensors.

Lateral - Provide specialized high quality images to suit orthodontics and maxillofacial surgeries.

Full Lateral - Gives 30% larger images and the occipital area of the patient for comprehensive diagnosis.

Vatech is a South Korean manufacturer that specialise in digital imagery products. They are known for their quality products that are recognised as some of the best in the industry.

Specifications of the Vatech PaX-i 3D Green:
Voxel Size

5X5 : 0.08mm / 0.2mm
8X8, 10X8, 12X9, 16X10 : 0.2mm / 0.3mm
15X15 : 0.25mm / 0.3mm

Function

Pano + CBCT + Ceph

CT - FOV Size(cm)

10X8 : Multi [5X5 / 8X5 / 8X8 / 10X8]
16X10 : Multi [5X5 / 8X5 / 8X8 / 12X9 / 16X10]
15X15 : Multi [5X5 / 8X5 / 8X8 / 12X9 / 15X15]

Scan Time
* FOV 16X10 & FOV 10X8

   Pano : 10.1sec(Normal)

   Scan Ceph : 3.9sec
   One Shot Ceph : 0.7-0.9sec

   CBCT : 5.9sec (Mode : Low Dose / Ultra Low Dose)

* FOV 15X15

   Pano : 10.1sec(Normal)

   Scan Ceph : 3.9sec
   One Shot Ceph : 0.7-0.9sec

   CBCT : 9sec

Ceph FOV Size
SC

21X23cm (8.3"X9.1") [LAT,PA,SMV,Waters View,Carpus]
27X23cm (10.6"X9.1") [Full LAT]

OP

20X20cm (8"X8") [LAT, PA]
23X25cm (9"X10") [LAT, PA]
30X25cm (12"X10") [LAT, PA, SMV, Waters View, Carpus]

Gray Scale

14 bit

Patient Position

Standing / Wheel-Chair Accessible

Tube Voltage/Current

50-100kVp (1 kV step) / 4-16mA (0.1mA step)

Site survey: Recommended
